Crystal oscillator XO-25000E

crystal oscillator
crystal oscillator
Add to favorites
Compare this product


Other characteristics
clock, miniature, for extended temperature range

Min.: 1.25 MHz

Max.: 100 MHz

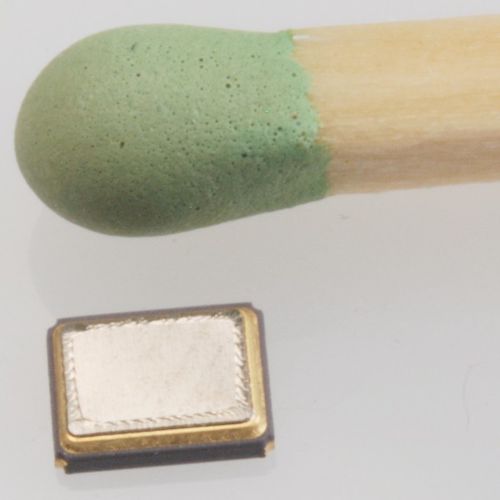

The product series XO-25000E offers an extended industrial temperature range with very small dimensions. For these crystal clock oscillators (XO) 3 different temperature ranges are available, which are not covered through usual standard products; following temperature ranges and stability-groups are available: -55 bis +125 °C ±50ppm -40 bis +125+°C ±50ppm -40 bis +105 °C ±40ppm This includes stability vs. temperature range, adjustment tolerance @ 25°C, stability vs. 5% supply voltage change and 5% load change and aging for the first year. Frequencies are available between 1.25 MHz and 100 MHz, with standard frequencies like 10 MHz, 20 MHz, 26 MHz, 50 MHz or 100 MHz. The hermetically sealed ceramic-package with dimension 2.5 x 2.0 mm is RoHS compliant. The available supply voltages are 1.8 V, 2.5 V or 3.3 V. With (LV)HCMOS and 45 to 55% duty cycle output is today’s industry standard. Output signal can be switched to high impedance (tristate) with disable-pin, which is useful for test procedures. Because of the low jitter of < 1ps rms (12 kHz to 20 MHz) these clock oscillators are recommended for sophisticated applications. Applications For all applications which requires a stable reference clock over a wide temperature range under rough environmental conditions the XO-25000E is the best choice: Industrielle instrumentation Oil drilling equipment Geothermal industry Commercial space applications Automotive equipment


3 Pages
3 Pages
