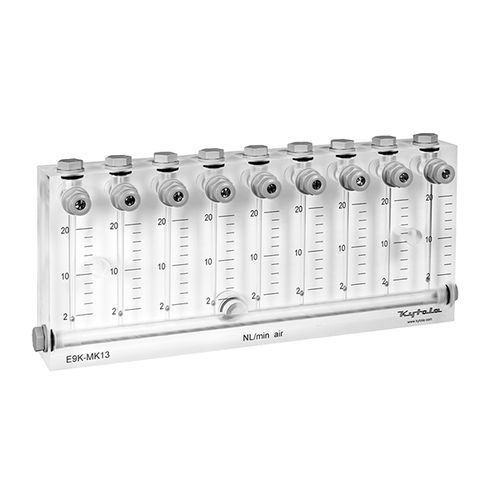

Variable-area flow meter ExK

volumefor liquidsfor gas

The acrylic variable area flow meter ExK is especially suited for oxygen flow measurement. The flow meter is available with 2 -to 12 flow tubes. The acrylic variable area flow meter multi-tube block ExK has clear indication of current flow. It monitors and measures liquid and gas flows with uttermost accuracy and precision. The flow meter is durable and performs well in industrial environments. The finess of the flow meter lies in the skillfully manufactured components which ensure its accuracy and reliable operation in industrial applications. The body is made in one piece of precision-machined acrylic which prevents leaks as no attachments are required. Special emphasis has been put into its user friendliness. The flow rate is easily read at a glance as the scales are clear. The flow meter unit is rapid to assemble and disassemble whenever maintenance is needed. Variable area flow meter Model ExK is a high quality acrylic multi-tube flow meter. Model ExK is equipped with flow adjustment valves on the outlet and is also available in customized designs. We recommend Kytola's variable area flow meter block model ExK especially for the following applications water and air purging CO₂ control in greenhouses Main technical features of the Kytola ExK variable area flow meter block: acrylic body flow adjustment valvеs on the outlet 2 – 12 flow tubes several flow ranges clear, easy-to-read scale Technical data Body - Acrylic (PMMA) Seals - Nitrile (*Viton®, EPDM) Adjustment valves - On outlet Valve housing/plugs - Nylon Valve spindle - AISI 316 Number of flow tubes - 2-12 Connections G/NPT - G 1/4″ outlet, G 1/2″ inlet, thread adapters must be used to NPT
