Oval gear flow meter SRx series

volumefor oilaluminum

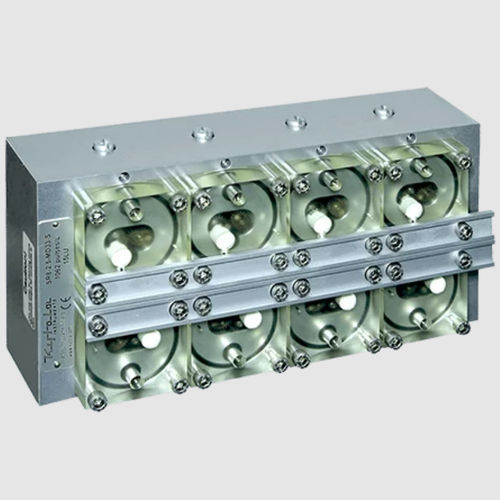

Positive displacement oval gear flow meter block SRx consists of up to eight flow meters. It is a multi-channel flow meter especially designed for lubrication oil flow measurement in demanding industrial environments with limited space. Kytola’s oval gear flow meters always show the correct flow rate regardless of temperature or viscosity changes. They are an excellent choice for applications that require high resistance to chemicals combined with low loss of pressure. The precise and highly accurate measuring is based on two toothed oval-shaped gears that are rotated by the flow. Each oval gear rotation generates two pulses and each rotation measures a constant volume of oil. The pulse signal can be transferred to indicators, counters, or automation systems. Kytola SRx positive displacement flow meter blocks come with a flow adjustment valve. Kytola’s multi-tube flow meter SRx has a sturdy construction. It is made with durable shock-resistant and wear-proof plastic and aluminium components. The transparent cover makes it easy to visually monitor the flow meter on the run. Blocks can be ordered with 4, 6 or 8 measuring points. SRx is a cost-efficient and long-term solution for a variety of industrial applications such as lubrication oil flow measurement industrial oil flow monitoring process control Main technical features of the Kytola SRx oval gear flow meter block: multi-channel independent of viscosity and temperature changes Kytola coil or NAMUR sensors NPT or G thread connectors flow adjustment valves transparent cover provides highly visible oil flow indication
