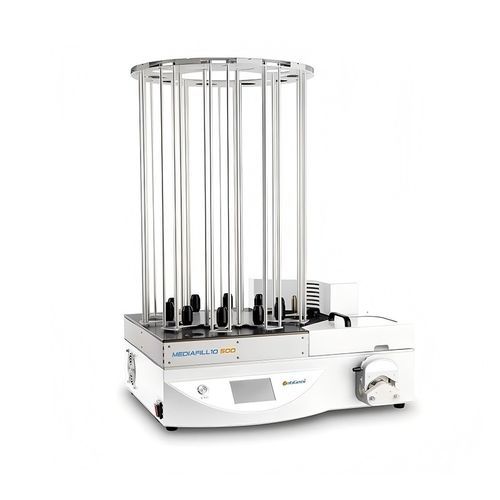

Liquids dispenser MEDIAFILL-10 500

culture mediaautomaticcontinuous

Overview
MEDIAFILL-10 500 automatic culture medium dispenser is an intelligent instrument that integrates quantitative medium dispensing, automatic stacking/unstacking of Petri dishes and an optional high-pressure steam sterilizer. It provides an aseptic, accurate and quantitative medium preparation and dispensing system designed to operate with minimal personnel intervention.

Application
Used for preparation, sterilization and aseptic dispensing of solid medium plates such as bacterial nutrient agar and Sabouraud fungal medium. Widely used in hospitals, food and environmental testing, disease control, scientific research, inspection and third-party laboratories for automated preparation of microbial culture plates.

Features

• 3-inch color touchscreen with intuitive UI for simple operation.
• Flow calibration function for accurate dispensing control.
• Anti-drip and compensation functions to prevent liquid dripping during filling.
• High-precision peristaltic pump for accurate quantification and rapid dispensing.
• Suction-cup uncovering design prevents separation of dish body and lid; ensures stable operation and compatibility with various dish types.
• Built-in ultraviolet lamp; optional special ultra-clean station to maintain a sterile working environment.
• Multi-station design supports simultaneous stacking/unstaking of Petri dishes.
• Detachable multi-station turntable for easier cleaning and maintenance.
• Multiple automatic protections and one-button sub-assembly start for unattended operation.
• Optional integrated high-pressure steam sterilizer enables automatic sterilization and quantitative dispensing.

Work flow
Automatic stacking/unstacking of Petri dishes → flow-calibrated medium dispensing by peristaltic pump with anti-drip control → optional integrated high-pressure steam sterilization → stacking/storage. Designed for continuous automated production of sterile solid medium plates.

Specifications (table)
Model: MEDIAFILL-10 500 Medium Dispenser
Working voltage: AC220V / 50Hz
Power: 400W
Dispensing range (ml): 5-1000 ml
Dispensing accuracy (30 ml): ±2%
Dispensing speed: 500 pcs/h
Dispensing quantity per cycle: 300 pcs
Petri dish specifications: Diameter 90 mm, 60 mm (optional)
Dimensions: L650 × W510 × H840 mm (300 pcs) or H620 mm (200 pcs)
Standard configuration: 200 dishes storage; Diameter 90 mm petri dish
Optional configuration: 300 dishes storage; Diameter 60 mm petri dish; 10L autoclave sterilizer; special ultra-clean station

Technical specifications

• Model: MEDIAFILL-10 500
• Working voltage: AC220V / 50Hz
• Power: 400W
• Dispensing range: 5–1000 ml
• Dispensing accuracy (30 ml): ±2%
• Dispensing speed: up to 500 plates/hour
• Capacity per cycle: 300 plates
• Compatible plates: Ø90 mm (standard), Ø60 mm (optional)
• Dimensions: L650 × W510 × H840 mm (300 pcs) or H620 mm (200 pcs)
• Options: integrated 10L steam autoclave, special ultra-clean station, 300-plate storage
