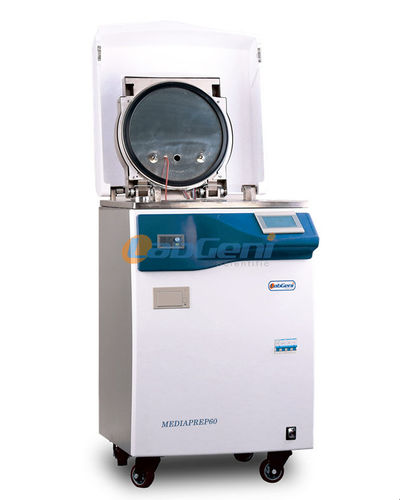

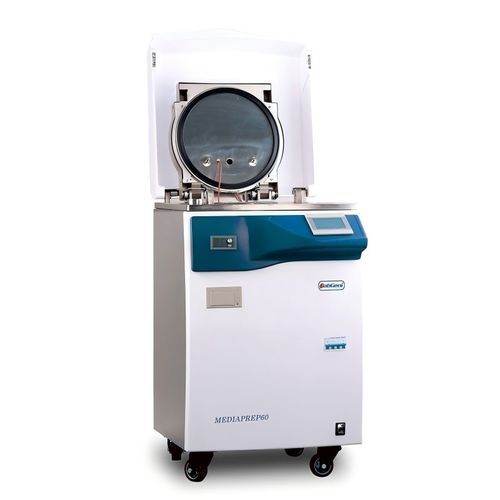

Media preparator MEDIAPREP series

Product overview
Automatic media preparator for laboratory culture media preparation and aseptic dispensing. Available in two capacities (MEDIAPREP-45 and MEDIAPREP-60), designed for programmable sterilization, controlled heating/cooling and aseptic additive handling.

Key functions & features

• Flexible operation modes: standard, chocolate agar (special 2-step procedure), water bath (pre-dissolve at 30–80 °C), and sterilization mode for glassware.
• Efficient heating and rapid cooling: high-power heating elements (15 kW) and plate heat exchanger provide fast heating and gentle, controlled cooling while maintaining chamber pressure to prevent boiling.
• Magnetic stirring with adjustable speed (0–240 rpm) for uniform mixing and reduced condensation.
• Large auxiliary feeding port (Ø 32 mm) for aseptic addition of antibiotics, blood or growth factors; dispensing port features automatic sterilization to lower contamination risk.
• Data logging: records sterilization parameters and work status with support for long-term data storage and traceability.
• Safety: multi-sensor monitoring, automatic interlocks, unique lid-lock design with dual temperature/pressure control, over-temperature protection and pressure vessel certification.

Operating modes

• Standard mode: prepare standard or high-sensitivity media with programmable sterilization temperature/time and dispensing timing.
• Chocolate agar mode: two-step heating/sterilization allowing nutrient addition via the feeding port after sterilization.
• Water bath mode: pre-dissolve media at 30–80 °C; water jacket system permits heating liquids in glassware placed in the sterilizer.
• Sterilization mode: functions as a benchtop sterilizer for small batches of tubes, flasks and glassware.

Medium sterilization & reliability
Combined efficient heating/cooling and uniform agitation reduce thermal stress and preserve media components. Pt-1000 temperature probe and microprocessor control ensure repeatable sterilization. The system performs automatic airtightness checks before cycles and includes independent temperature and pressure detectors, over-voltage protection and automatic pressure relief on electronic fault.

Simple dispensing & integration
Designed to minimize residual volume and ease lab workflows. Compatible with automated plate dispensers and manual peristaltic pumps; adaptable to plates, flasks and jars. Dispensing hoses (Ø 6 mm, thickness 2 mm) and ports support aseptic additions and diverse dispensing setups.

Safety

• Lid-lock design with dual control of temperature and pressure to prevent accidental opening.
• Automatic locking if temperature or pressure exceed safety thresholds.
• Over-temperature protection with alarm and automatic power cut.
• Pressure vessel certified for safe operation.

Sterilization data & logging
Built-in logging tools record sterilization parameters and operational status to support traceability and long-term data retention.

Technical illustrations & principle
Operational diagrams describe water jacket heating transfer, chamber layout, feeding/dispensing ports and stirring/temperature probe placement (illustrations omitted).

Technical specifications

• Model series: MEDIAPREP
• Available models: MEDIAPREP-45, MEDIAPREP-60
• Load capacity: 45 L (MEDIAPREP-45), 60 L (MEDIAPREP-60)
• Chamber capacity: 62 L (45), 87 L (60)
• Chamber size (H×Ø approx): 400 × 480 mm (45), 400 × 685 mm (60)
• Inner bucket size: 380 × 440 mm (45), 380 × 640 mm (60)
• Sterilization temperature range: 90–135 °C (design 147 °C)
• Packing/dispensing temperature range: 35–80 °C
• Water bath temperature: 0–100 °C
• Temperature accuracy: 0.1 °C; temperature offset: 1 °C
• Time setting accuracy: 1 minute
• Maximum working pressure: 2.5 bar (design 3.5 bar)
• Sterilized water in cavity: deionized pure water; automatic water feed supported (pressure ≥ 1 bar); high/low water level alarm
• Cooling water interface: 2 points, inner thread, diameter 12 pagoda joint
• Circulating water: tap water, pressure ≥ 1 bar
• Drainage interface: 2 points, inner thread, diameter 12 pagoda joint
• Sterilizer material: stainless steel S31603
• Dispensing ports: 2 pcs (one suitable for aseptic additions)
• Dispensing hose: inner Ø 6 mm, thickness 2 mm
• Material feeding port diameter: 32 mm
• Stirring: magnetic stirring, speed adjustable 0–240 rpm
• Cooling system: supplementary pressurized water cooling to maintain chamber pressure during rapid cooling
• Temperature sensor: flexible Pt-1000 probe in preparation chamber
• Heating power: 15 kW
• Power requirements: 3×380–420 V, 50/60 Hz, 40 A
• Dimensions (H×L×W): 925 × 670 × 795 mm (MEDIAPREP-45); 1120 × 675 × 795 mm (MEDIAPREP-60)
• Net weight: approx. 160 kg (45), 180 kg (60)
