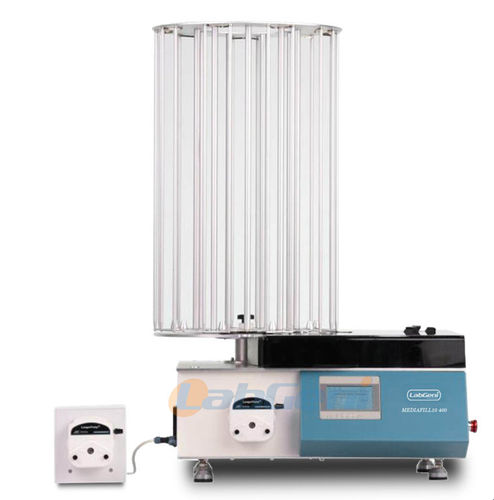

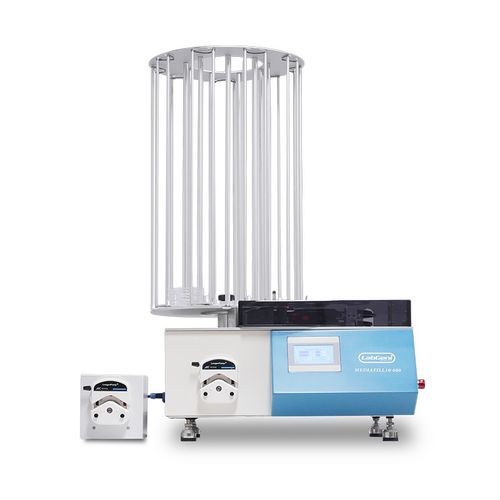

Liquids dispenser MEDIAFILL10 series

culture mediaautomatedPLC-controlled

OverviewMEDIAFILL10 media dispenser is a compact, automated system for aseptic dispensing of cell culture media into Petri dishes (supports 90 mm standard, 60 mm optional). It accepts prepared sterile media (1–10 L) and is designed to integrate with automatic media preparators to form a complete preparation-and-dispensing line.

Short features

• Compatible with 90 mm and 60 mm Petri dishes (other diameters customizable)
• Dual-pump option; dispensing speed up to 800 plates/h (MEDIAFILL10-400 with dual pumps)
• Optional dual-pump configuration enables co-dispensing of blood and medium for blood culture plates
• Siemens PLC control; Omron position sensors
• Large touchscreen HMI for intuitive parameter setup and operation
• Interfacing compatible with major automatic media preparator brands

Operation and automationAll functions are managed via a full-screen graphical interface guiding the operator through setup and runs. Plate transport is monitored by sensors and the system auto-adjusts for plate diameter and stack shape. Typical workflow: after preparing 9 L of medium the system can fill up to 540 plates with a single operation. For aseptic filling, the work area should be equipped with a UV sterilization lamp.

Key Components Origin

• Siemens PLC (Germany)
• Solenoid valves (Italy)
• Stirrer motor (Spain or Japan)
• Pressure sensor (Switzerland)
• Stirrer bar (Japan)
• Circulating pump (USA)

Technical Parameters (summary)Model: MEDIAFILL10 200 / MEDIAFILL10 400
Dispensing hose: 25# or 17#; flow rate: 0.2–1120 ml/min (25#), 0.3–1780 ml/min (17#)
Dispensing accuracy: 1% (at 20 ml) with calibration program
Dual pump system: optional (blood culture application)
Dispensing speed: MEDIAFILL10 200 = 400 pcs/h; MEDIAFILL10 400 = 800 pcs/h (with dual pumps)
Petri dish capacity: 200 model standard 25 pcs/grid × 9 grids (up to 175 × 90 mm); 400 model standard 40 pcs/grid × 9 grids (up to 280 × 90 mm); 60 mm holder optional
Plate layers: 200 model 3 layers (90 mm), 60 mm optional; 400 model 6 layers (90 mm), 60 mm optional
Shaking: MEDIAFILL10 400 = yes (improves medium distribution); MEDIAFILL10 200 = N/A
Optional semiconductor refrigeration module (MEDIAFILL10 400)
Optional print module (MEDIAFILL10 400) for production/expiry/batch on dish
UV lamp: 254 nm, 11 W, ~13,000 h life; separate-area disinfection with replacement reminder
Controls: touchscreen HMI, Siemens PLC
Cleaning: removable dish and rotary plate for cleaning and disinfection
Alarm: failure alarm function
Size (H×W×D): 260 × 520 × 770 mm; Net weight: 40 kg
