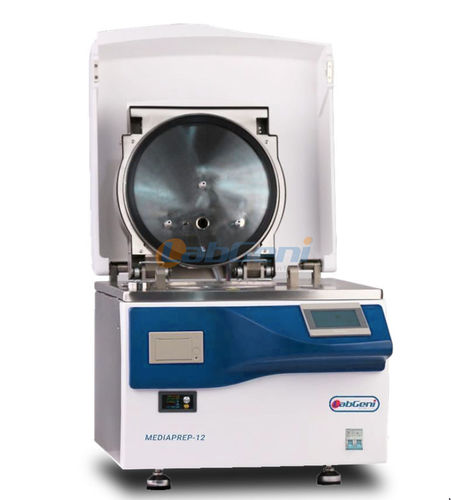

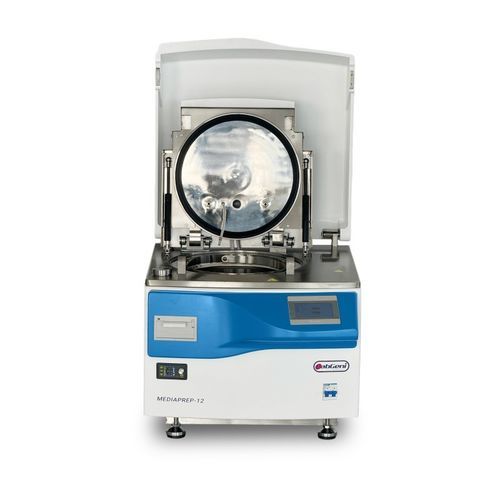

Media preparator MEDIAPREP12

Short description

• 12 L automatic culture medium preparator
• Touch screen — easy to use
• Siemens (Germany) control components
• Solenoid valves (Italy)
• Pressure sensor (Switzerland)
• Stirrer bar (Japan)
• Includes air compressor
• Built-in micro printer
• Compatible with a wide range of media dispensers

Overview
High-quality media preparation for biological culture with automated sterilization, precise monitoring and programmable procedures. MEDIAPREP ensures uniform media quality and reduces manual labor and repetitive tasks. The instrument sterilizes, monitors and controls time, temperature and pressure during sterilization and offers an intuitive graphical interface for easy programming and operation.

Operating modes

• Standard mode: Prepare standard or highly sensitive media; sterilization temperature/time and dispensing time are programmable.
• Chocolate Agar mode: Special two-step procedure for complex media; allows nutrient addition (e.g., blood) via feeding port after initial sterilization, followed by further heating steps.
• Water bath mode: Pre-dissolve medium at 30–80 °C before sterilization; glassware can be heated in a water bath placed in the sterilizer.
• Sterilization mode: Use as a small table sterilizer for tubes, flasks and other glassware.

Functionality and process
Strong magnetic stirring ensures homogeneous mixing inside the inner chamber and prevents condensation. The system can pre-dissolve medium, perform sterilization with accurate control, then dispense at a defined dispensing temperature. Fast and efficient heating and cooling reduce thermal stress and preserve nutrient integrity. Automatic system checks (e.g., lid seal) run prior to sterilization to prevent leakage and ensure safe operation.

Safety and data recording
Equipped with multiple independent temperature/pressure detectors and an independent over-voltage safety protection device. The unit locks the lid under defined high-temperature and/or high-pressure conditions to prevent accidental opening. Over-temperature alarm and automatic power cut-off protect against unsafe conditions. The system supports sterilization data logging (parameters and status) for record-keeping.

Key features

• Water-jacket heating design for efficient heat transfer and controlled vapor saturation in the chamber
• Powerful magnetic stirrer with adjustable speed and direction
• Rapid heating using efficient heating elements and rapid cooling via plate heat exchanger
• Pressure-maintenance system to avoid boiling during cooling
• Large auxiliary addition port for aseptic addition of additives (antibiotics, blood, growth factors)
• Automatic sterilization of dispensing port to minimize contamination risk
• Designed to integrate with automated media plate dispensers or manual peristaltic pumps
• Pressure vessel certification and multiple built-in safety interlocks

Caractéristiques / spécifications techniques

• MODEL: MEDIAPREP12 (HMP-12)
• Inner bucket capacity: 12 L
• Chamber capacity: 18 L
• Chamber size (D x H): 300 mm x 260 mm
• Inner bucket size (D x H): 260 mm x 222 mm
• Sterilization temperature: 70 °C – 130 °C (design temp. 140 °C)
• Dispensing temperature: 25 °C – 80 °C
• Water bath temperature: 30 °C – 80 °C
• Max working pressure: 2.5 bar
• Design pressure: 4 bar
• Cavity sterilized water: Deionized pure water; auto water supplement (requires supply pressure ≥ 1 bar); high/low water level alarm
• Cooling water port: 2 points, inner connection, diameter 12 (pagoda joint)
• Circulating water: Tap water, supply pressure ≥ 1 bar
• Drainage port: 2 points, inner connection, diameter 12 (pagoda joint)
• Temperature accuracy: 0.1 °C
• Temperature offset: 0.5 °C
• Time setting accuracy: 1 minute
• Sterilization pot material: 1.4301 / 1.4305 (similar to SS316)
• Dispense port: 2 pieces (adaptable to various dispensing requirements); one port can be used for aseptic addition
• Dispensing hose: ID 6 mm, thickness 2 mm
• Material feeding port diameter: 32 mm
• Stirring: Magnetic stirring; 120–240 rpm adjustable
• Pressure supplement: Complementary pressure water cooling to maintain tank pressure during rapid cooling
• Heating power: 3.6 kW
• Power supply: AC 220–240V, 50/60Hz, 20A
• Dimensions (L x W x H): 550 x 700 x 545 mm
• Weight (NW / GW): 111 kg / 160 kg
