Lubricating fluid

for metal parts

Product overview
The diamond suspension polishing fluid is formulated in a temperature-controlled laboratory by homogenizing high-performance diamond abrasives with cooling and lubricating additives. Available in water- and alcohol-based variants, the system provides a stable suspension and is free of volatile organic compounds. It is intended for metallographic and petrographic sample preparation and for high-precision grinding and polishing of ferrous and non-ferrous metals, ceramics, composites, gemstones, precision instruments and optical glass.

Product advantages

• High particle-size concentration: selected diamond abrasives with strict purification and grading ensure a narrow and consistent particle-size distribution.
• Stable suspension system: water- and alcohol-based formulations keep diamond particles uniformly suspended for consistent polishing performance.
• High removal and polishing rates: high-hardness abrasives provide efficient material removal, reducing abrasive consumption and process time.
• No volatile organic compounds: modern wetting and dispersing agents with no VOCs, improving operator safety and environmental compliance.

Buying guide

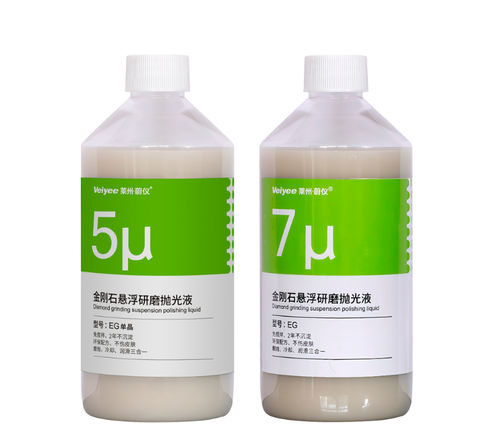

• EG — Particle sizes: 28 μm, 20 μm, 14 μm, 10 μm, 9 μm, 7 μm, 6 μm, 5 μm, 3.5 μm, 2.5 μm, 1.5 μm, 1.0 μm, 0.5 μm, 0.25 μm, 0.05 μm | Capacity: 500 ml / 1000 ml | Single-crystal, water-based formulation using ethylene glycol; recommended for most metals and soft materials in metallographic preparation.
• PG — Particle sizes: 15 μm, 9 μm, 6 μm, 3 μm, 1 μm, 0.5 μm | Capacity: 500 ml / 1000 ml | Single-crystal, water-based formulation using propylene glycol; for soft and tough materials.
• WS — Particle sizes: 15 μm, 9 μm, 6 μm, 3 μm, 1 μm, 0.5 μm | Capacity: 500 ml / 1000 ml | Polycrystalline, water-based formulation using propylene glycol; for mixed-composition and variable-hardness materials.
• DS — Particle sizes: 15 μm, 9 μm, 6 μm, 3 μm, 1 μm, 0.5 μm | Capacity: 500 ml / 1000 ml | Polycrystalline, alcohol-based formulation; for materials that must not contact water.

Technical specifications

• Product name: Diamond suspension polishing fluid.
• Safety/environment: No volatile organic compounds in dispersant; formulated to minimize health and environmental risks.
• Preparation: Homogenized under controlled temperature with cooling–lubricating additives for uniform suspension.
• Available series: EG, PG, WS, DS (see particle sizes per series).
• Capacity options: 500 ml bottle, 1000 ml bottle.
• Base formulations: EG = ethylene glycol water-based (single-crystal); PG = propylene glycol water-based (single-crystal); WS = propylene glycol water-based (polycrystalline); DS = alcohol-based (polycrystalline).
• Applications: Metallographic/petrographic sample preparation; high-precision grinding and polishing of metals, ceramics, composites, gemstones, precision instruments and optical glass requiring ultra-smooth surfaces.
