Machine tool vise 818155-axis machine toolfor milling machines5-axis
Add to favorites
Compare this product
Characteristics
- Applications
- for machine tools, for milling machines, 5-axis machine tool
- Configuration
- 5-axis
- Other characteristics
- precision, hardened steel, self-centering, compact, for 5-axis machining, 5-face machining, center-clamping, concentric
- Max. clamping force
Max.: 30,000 N
- Max. clamping range
Min.: 40 mm
(2 in)Max.: 810 mm
(32 in)
Description

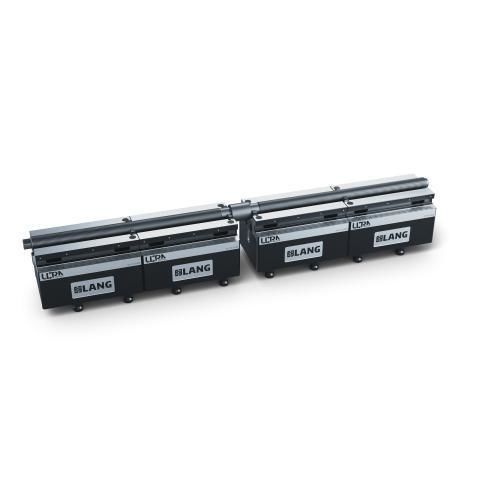

Makro•Grip® Ultra, Base Set
height 109 mm, clamping range 40 - 810 mm
The Makro•Grip® Ultra Base Set “M” with a height of 109 mm consists of four long (192 mm) system bodies each, which result in a maximum clamping range of 810 mm. The set also includes a spindle unit, centering and connecting plates and accessories. Clamping jaws are available separately. Due to its clamping range, this base set is ideal for centric clamping of large components and larger plates.
Further information can be found in our catalog starting on page 188 or
online at https://lang-technik.de/en/solutions/workholding/makro-grip-ultra
height 109 mm, clamping range 40 - 810 mm
The Makro•Grip® Ultra Base Set “M” with a height of 109 mm consists of four long (192 mm) system bodies each, which result in a maximum clamping range of 810 mm. The set also includes a spindle unit, centering and connecting plates and accessories. Clamping jaws are available separately. Due to its clamping range, this base set is ideal for centric clamping of large components and larger plates.
Further information can be found in our catalog starting on page 188 or
online at https://lang-technik.de/en/solutions/workholding/makro-grip-ultra
