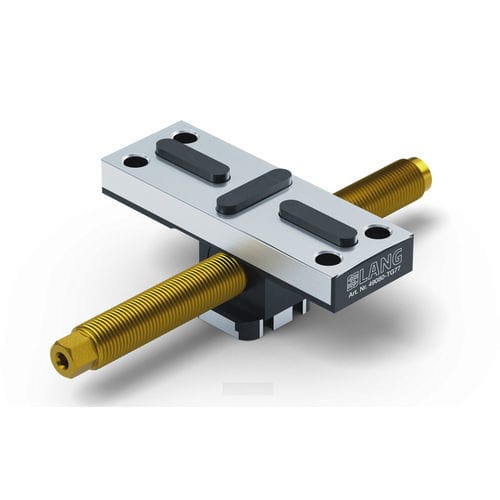

Vise jaw 49080-TG77

Profilo 77, Center Jaw + Spindle
jaw width 112 mm, spindle length 175 mm
If required, the Profilo vise can be converted into a multiple clamping vise. During the conversion, which can be carried out in a few moments, only the set of spindle + center piece from the vise has to be replaced by the center base jaw + spindle. For (multiple) workpiece clamping, the same top jaw as for the base jaws is mounted on the center base jaw.

Further information can be found in our catalog starting on page 164 or
online at https://lang-technik.de/en/solutions/workholding/makro-grip-technology
