Impact tester IT 152-4K

for packagingindustrialpneumatic

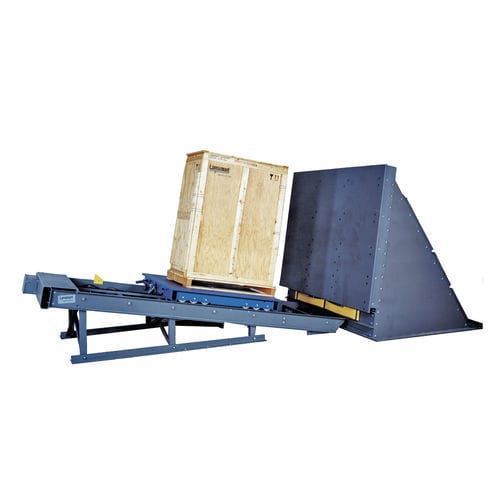

Inclined Impact Tester The IT 152-4K performs inclined impact tests which simulate distribution handling hazards. Our design meets traditional industry specifications with the added benefits of some innovative design ideas. The unique articulating carriage pivots to load the test item. With the top surface level, it’s safer and easier to place the test load on the carriage with a forklift. The carriage lowers into its testing position and then you can begin performing impacts. Lansmont’s pneumatic articulation system is fast, safe, and reliable. The IT 152-4K carriage dimensions are 60 in. (152 cm) square. The impact surface (backstop) is 84 in. (213 cm) wide x 76 in (193 cm) high. The IT 152-4K can test payload s weighing up to 4000 lbs. (1814 kg). The standard system can generate a maximum impact velocity of 7.3 ft./sec. (2.2 m/sec.). The handheld controller allows an operator to position the carriage while remaining safely away from the machine. Built-in safety interlocks protect the operator from potentially dangerous conditions. Product Features Highlights • Articulating carriage system for convenient loading • Handheld controller for safe operation Product Specification Highlights • Max Impact Velocity: 7.3 ft./sec. (2.1 m/sec.) • Max Payload: 4000 lbs. (1814 kg) • Carriage Size: 60 in. x 60 in. (152 cm x 152 cm) • Backstop Size: 84 in. x 76 in. (213 cm x 193 cm) Product Options Highlights • Integrated safety interlocks which disable the system when triggered. • Velocity meter for measuring impact velocity. • Test Partner data acquisition.
