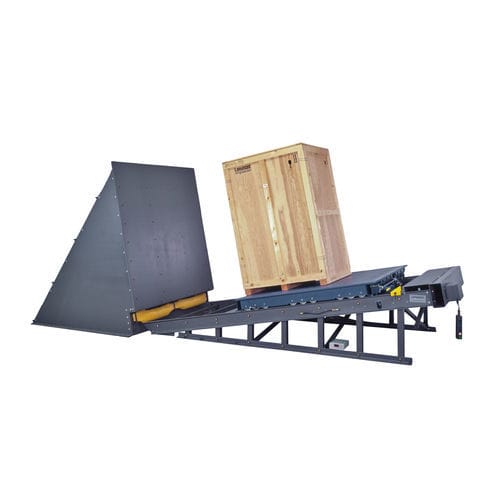

Inclined Impact Tester
The IT 213-6K performs inclined impact tests which simulate distribution handling hazards. Our design meets industry specifications with the added benefits of some innovative design ideas.
The unique articulating carriage pivots to load the test item. With the top surface level, it’s safer and easier to place the test load on the carriage with a forklift. The carriage lowers into its testing position and then you can begin performing impacts. Lansmont’s pneumatic articulation system is fast, safe, and reliable.
The IT 213-6K carriage dimensions are 84 in. (213 cm) square. The impact surface (backstop) is 96 in. (244 cm) square. The IT 213-6K can test payload s weighing up to 6000 lbs. (2721 kg). The standard system can generate a maximum impact velocity of 7.3 ft./sec. (2.2 m/sec.).
The handheld controller allows an operator to position the carriage while remaining safely away from the machine. Built-in safety interlocks protect the operator from potentially dangerous conditions.
Product Features Highlights
• Articulating carriage system for convenient loading
• Handheld controller for safe operation
Product Specification Highlights
• Maximum Impact Velocity: 7.3 ft./sec. (2.2 m/sec.)
• Max Payload: 6000 lbs. (2721 kg)
• Carriage Size: 84 in. x 84 in. (213 cm x 213 cm)
• Backstop Size: 96 in. x 96 in. (244 cm x 244 cm)
Product Options Highlights
• Integrated safety interlocks which disable the system when triggered.
• Velocity meter for measuring impact velocity.
• Test Partner data acquisition.
