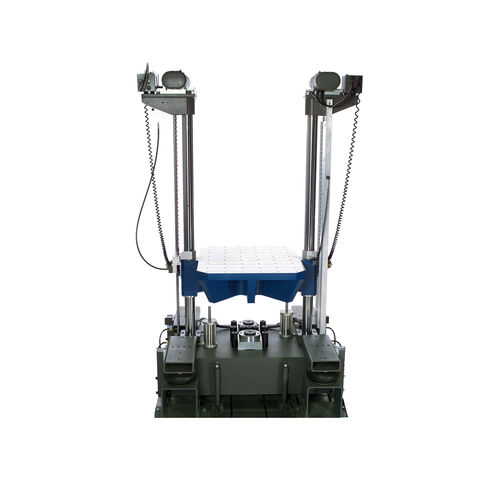

The Model 95/115D Shock Test System performs shock tests with pulse quality superior to other systems of comparable size.
The Model 95/115D Shock Test System performs shock tests with pulse quality superior to other systems of comparable size.
An enhanced version of the Model 95/115 Shock Test System, the Model 95/115D includes an upgraded cast aluminum shock table.
The Damage Boundary Programmers are embedded into the low frequency seismic base.
A special Low Impulse Kit is mounted atop the seismic base for performing low energy shock pulses that are often used for operational qualifications.
Features highlights
• TouchTest Shock 2 Controller for easy and safe operation
• Cast aluminum table design to produce high quality shock pulses
• Damage Boundary Programmer for generating 2 msec half sine and trapezoidal shock pulses
• Electric hoist lifting and positioning system enables precise drop repeatability
• Low Impulse Kit for extended low level testing capability
• Low frequency Seismic Base to limit the shock energy that transmits to the floor
Specification highlights
TABLE DIMENSIONS: 37.4 x 45.3 in. (95 x 115 cm)
MAX ACCELERATION: 600g
MAX VELOCITY CHANGE: 26.6 ft./sec (8.1 m/sec)
MAX PAYLOAD: 1000 lbs. (454 kg)
Options highlights
• Customized table mounting patterns available
• Acceleration Kits to increase velocity change performance
• Dual Mass Shock Amplifiers to generate extremely high acceleration levels (10,000g+)
• Hold Down Fixtures for securing test items
• Additional Shock Pulse Programmers for short and long duration half sine, as well as terminal peak sawtooth shock pulses
