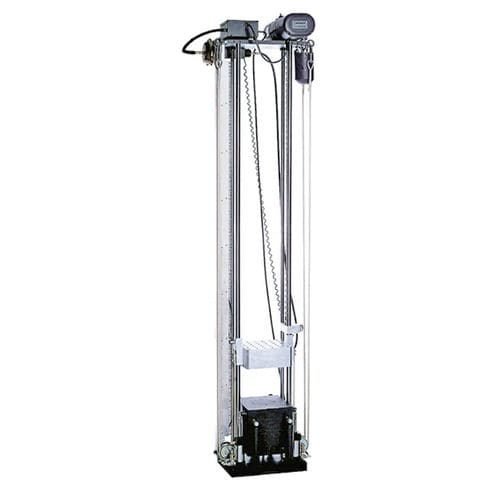

Shock testing machine P30

performancecomputer-controlledmaterials

The P30 Performance Shock Test System was developed for consumer electronic testing applications. The P30 Performance Shock Test System is designed for shock test applications that require testing capabilities above what can be achieved with our standard shock system range. Our performance shock systems feature optional acceleration systems, suspended seismic reaction masses, and heavier load frames. Test Partner 4 Data Acquisition Systems are the perfect complement to the P30. Features highlights • TouchTest Shock 2 Controller for easy and safe operation • Forged aluminum table design for generating high acceleration shock pulses • Acceleration kit to increase velocity change performance • Electric hoist lifting and positioning system enables precise drop repeatability • Floating seismic base to limit the shock energy that transmits to the floor Specification highlights Table dimensions: 11.8 x 11.8 in (30 x 30 cm) Max acceleration: 5,000 g (10,000 g optional) Max velocity change: 22 - 55 ft/sec (6.7 - 16.8 m/sec) Pulse waveforms: Half size, Trapezoidal*, Terminal Peak Sawtooth* Max payload: 110 lbs (50 kg) *With optional programmers. Options highlights • Customized table mounting patterns available • Low impulse kits to extend low level testing capability • Dual mass shock amplifiers to generate extremely high acceleration levels (10,000 g+) • Additional shock pulse programmers for short and long duration half sine, trapezoidal, and terminal peak sawtooth shock pulses • Test Partner Data Acquisition and instrumentation for data collection and analysis
