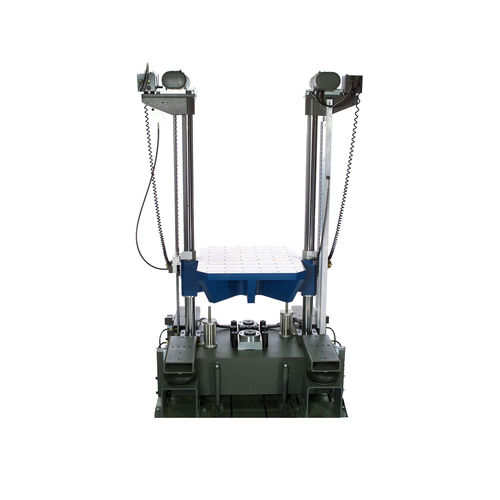

Shock testing machine P95/115

computer-controlledmaterialsmass

Lansmont's P95/115 Shock Test System can be equipped with optional shock pulse programmers to generate a wide range of half sine pulses & more. The P95/115 Shock Test System is a higher performance version of the standard Model 95/115 design. It can be equipped with optional shock pulse programmers to generate a wide range of half sine, trapezoidal and terminal peak sawtooth shock pulses. The P95/115 comes standard with a TouchTest Shock 2 Controller. TTS2 makes shock testing safe and easy. TTS2 communicates seamlessly with Test Partner Data Acquisition Systems. Features highlights • TouchTest Shock 2 Controller for easy and safe operation • High strength cast aluminum table design for generating high acceleration shock pulses • Electric hoist lifting and positioning system enables precise drop repeatability • Floating Seismic Base to limit the shock energy that transmits to the floor Specification highlights TABLE DIMENSIONS: 37.4 x 45.3 in. (95 x 115 cm) MAX ACCELERATION: 1000g MAX VELOCITY CHANGE: • Free Fall: 20 – 25 ft./sec (6.1 – 7.6 m/sec) • Accelerated: 25 – 50 ft./sec (7.6 – 15.2 m/sec) MAX PAYLOAD: • Free Fall: 2500 lbs. (1135 kg) • Accelerated: 1000 lbs. (454 kg) Options highlights • Low Impulse Kits to extend low level testing capability • Acceleration Kits to increase velocity change performance • Dual Mass Shock Amplifiers to generate extremely high acceleration levels (10,000g+) • Additional Shock Pulse Programmers for short and long duration half sine, trapezoidal, and terminal peak sawtooth shock pulses • Test Partner Data Acquisition and instrumentation for data collection and analysis
