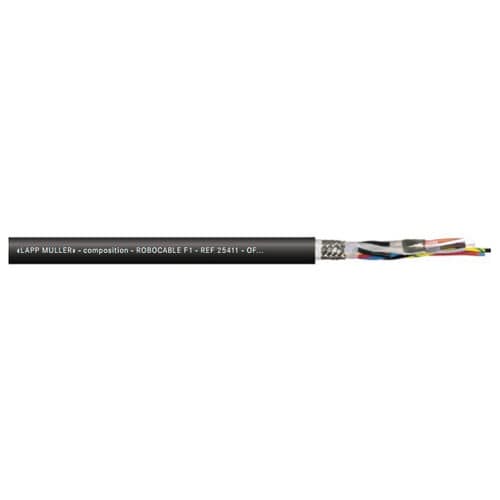

Servo motor electrical cable F1 powerDINinsulated
Add to favorites
Compare this product
Characteristics
- Type
- power
- Format
- DIN
- Protection
- insulated, oil-resistant, abrasion-resistant
- Core material
- copper
- Applications
- for robotics, for servo motors
- Material of the insulation
- polyurethane-sheathed
- Norms
- IEC
- Other characteristics
- flexible, braided copper
- Nominal voltage
Max.: 1,000 V
Min.: 300 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)
Description
These minaturized, spcecial polymers for robotics applications are manufacutred with ? 0.5² extra flexible tinned copper and > 0.5² extra flexible plain copper in accordance with NFC 32013 and IEC 228 Class 6.
Color coded to DIN 47100 for signals, in white with black n° + Y/G for power.
Feautres stranding of cores single conductors in twisted pairs with a short pitch tape wound for signal, and spun with tinned copper for optical coverage > 95% and tinned copper braid for optical coverage > 85%.
Povides excellent high mechanical resistance.
