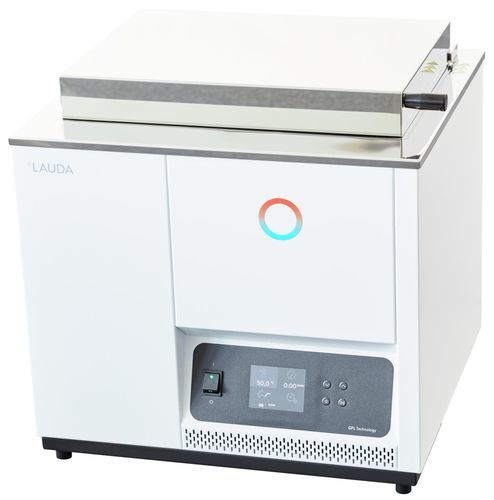

Boiling water bath Hydro H 41

laboratoryheatedthermostatic

Product overview
LAUDA Hydro water baths in stainless steel provide suitable bath depth and openings for laboratory and industrial applications. Series bath volumes range from 4 to 41 L; the variant shown has an effective bath volume of 9.3–37.9 L. The units deliver a working range up to 100 °C with temperature stability of ±0.1 K and support applications in the boiling range.

Key features

• Easy-to-operate water bath for laboratory and process tasks
• Timer adjustable in hours (h) and minutes (min) with three application-specific timer modes
• Adjustable trigger points for over/under-temperature alarms up to ±10 K
• Optical and acoustic alarms for low-level and over/under-temperature conditions
• Heat-insulating, double-walled stainless steel lid with inner curvature to avoid condensate dripping into vessels
• Bath interior, cover frame, perforated floor and heating element made of stainless steel
• Bath vessel with drain valve; lid and perforated floor supplied as standard

Operation & display

• TFT colour display with clear presentation of process data
• Membrane keypad with concise symbols for reliable operation
• Temperature display switchable between °C and °F
• Digital setpoint adjustment with 0.1 °C increments
• 1‑point temperature controller with electronic monitoring
• Sensor break / short-circuit monitoring

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability: ±0.1 K

Technical specifications

• Model: Hydro H 41
• Part number (shown variant): L002905
• Working temperature range: 25 … 100 °C
• Ambient temperature range: 10 … 40 °C
• Heater power max.: 1.5 kW
• Effective bath volume (variant): 9.3 / 37.9 L
• Series bath volume range: 4 – 41 L
• Dimensions (W×D×H): 510 × 490 × 476 mm
• Weight: 22 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: power cord with angled Schuko plug (CEE7/7)
