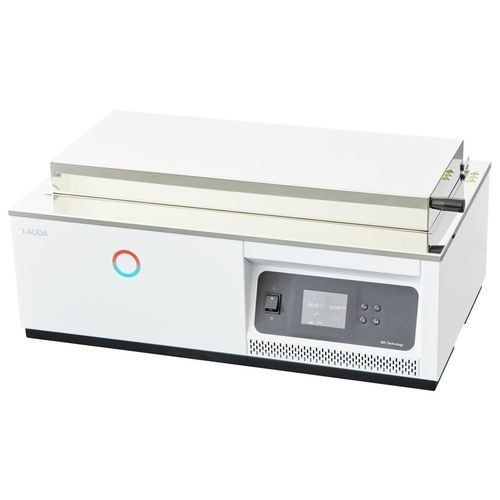

Digital display thermostatic bath Hydro H 24

stainless steelconstant temperatureheated

Description
LAUDA Hydro water baths made of high-quality stainless steel provide appropriate bath depth and opening for various industrial and laboratory applications. Available bath volumes range from 4 to 41 L. Units deliver a working temperature up to 100 °C with temperature stability of ±0.1 K and intuitive operation via a TFT colour display showing °C and °F.

Features

• Easy-to-operate water bath with digital setpoint adjustment
• Timer adjustable in hours (h) and minutes (min); three application-specific timer functions
• Adjustable over- and under-temperature alarm thresholds up to ±10 K
• Optical and acoustic alarms for low liquid level and over/under temperature
• Heat-insulating double-walled stainless steel lid with inner curvature to avoid condensate dripping
• TFT colour display with clear presentation of process data; temperature display switchable between °C and °F
• Membrane keypad with concise symbols
• Sensor break/short-circuit monitoring and electronic controller monitoring
• Bath interior, cover, perforated floor and heating element in stainless steel
• Design prevents condensate from dripping back into vessels
• Bath vessel with drain valve; lid and perforated floor supplied as standard
• Temperature display and setpoint in 0.1 °C increments; 1-point temperature controller

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability: ±0.1 K

Technical specifications

• Working temperature range: 25 … 100 °C
• Ambient temperature range: 10 … 40 °C
• Temperature stability: ±0.1 K
• Heater power (max.): 1.5 kW
• Bath volume (example variant shown): min. / max.: 11.3 / 20.9 L (range in product line: 4–41 L)
• Dimensions (W x D x H): 700 x 440 x 275 mm
• Weight: 18 kg
• Power supply: 230 V; 50/60 Hz
• Power plug: power cord with angled Schuko plug (CEE7/7)
• Materials: bath interior, lid, perforated floor and heating element in stainless steel
• Included equipment: double-walled insulating lid, perforated floor, drain valve
• Model: Hydro H 24
