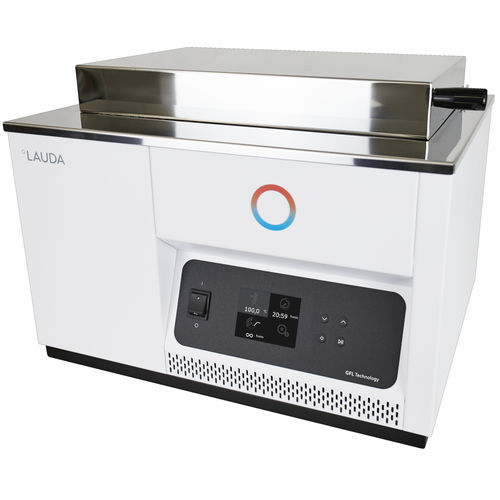

Laboratory water bath Hydro H 22

compactthermostaticheated

Product overview
LAUDA Hydro water baths in stainless steel provide configurable bath depths and openings for laboratory and industrial use. Device family volumes range from 4 to 41 L; the Hydro H 22 variant features bath volumes of 7.5 / 20.3 L. Temperature range up to 100 °C with stability of ±0.1 K. TFT colour display with temperature readout in °C and °F for intuitive operation.

Features

• Compact water bath, easy to operate
• Timer adjustable in hours (h) and minutes (min)
• Adjustable over- and under-temperature alarm setpoints up to ±10 K
• Optical and acoustic alarms for low liquid level and temperature deviations
• Three application-specific timer modes
• Double-walled, heat-insulating stainless steel lid with inner curvature to prevent condensate drip
• TFT colour display showing all process data
• Membrane keypad with clear symbols
• Temperature display selectable between °C and °F
• Sensor break / short-circuit detection
• Bath interior, cover, perforated floor and heating element made of stainless steel
• Digital setpoint adjustment with 0.1 °C resolution
• 1-point temperature controller with electronic monitoring
• Bath vessel with drain valve; lid and perforated floor supplied as standard

Working range (product key values)

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability / constancy: ±0.1 K

Technical data (excerpt)
Working temperature range: 25 ... 100 °C
Ambient temperature range: 10 ... 40 °C
Temperature stability: 0.1 ± K
Heater power max.: 1.5 kW
Min. / max. bath volume (this variant): 7.5 / 20.3 L
Dimensions (WxDxH): 500 x 440 x 345 mm
Weight: 16 kg
Power supply (example variant): 230 V; 50/60 Hz
Power plug (example variant): Power cord with angled plug (CEE7/7)

Accessories (examples)

• Insert racks in multiple sizes/variants
• Perforated floor and lid (standard)

Characteristics / technical specifications

• Model: Hydro H 22
• Bath material: stainless steel (interior, cover, perforated floor, heating element)
• Device family bath volumes: 4 to 41 L (specific variant: 7.5 / 20.3 L)
• Temperature control: 1-point controller, digital setpoint, TFT colour display
• Temperature resolution / display: 0.1 °C; selectable °C / °F
• Temperature stability: ±0.1 K
• Max. working temperature: 100 °C
• Max. heating power: 1.5 kW
• Dimensions (WxDxH): 500 x 440 x 345 mm
• Weight: 16 kg
• Supply / plug (shown variant): 230 V; 50/60 Hz; power cord with angled Schuko plug (CEE7/7)
• Safety / alarms: adjustable over-/under-temperature alarms, optical and acoustic alarms, sensor break/short-circuit monitoring
• Extras: double-walled insulating stainless steel lid; drain valve; lid and perforated floor as standard
