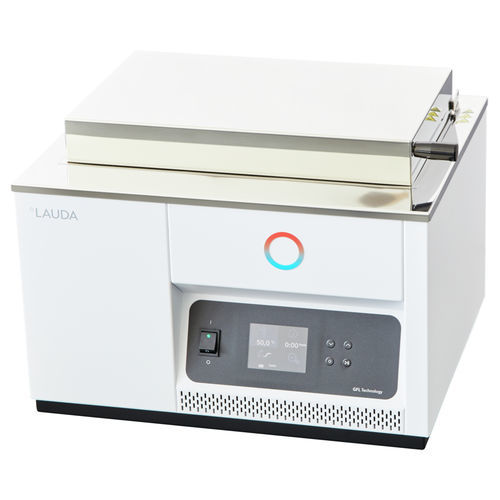

Laboratory water bath Hydro H 16

benchtopheatedthermostatic

Overview
LAUDA Hydro water baths made of stainless steel provide suitable bath depth and opening for a wide range of laboratory and industrial applications. The Hydro H 16 model covers an operational bath volume of 7.5–13.9 L and supports processes up to 100 °C with temperature stability of ±0.1 K. A TFT colour display shows temperatures in °C and °F for intuitive operation.

Features

• Easy-to-operate water bath with digital setpoint
• Timer adjustable in hours (h) and minutes (min); three application-specific timer modes
• Adjustable over- and under-temperature alarm trigger points up to ±10 K
• Optical and acoustic alarms for low liquid level and over/under temperature
• Insulated double-walled stainless steel lid with inner curvature to prevent condensate dripping
• TFT colour display and membrane keypad with clear symbols
• Temperature display switchable between °C and °F; 0.1 °C resolution
• Sensor break/short-circuit detection and electronic controller monitoring
• Bath interior, cover, perforated floor and heating element in stainless steel
• Bath vessel with drain valve; lid and perforated floor included as standard

Working range

• Minimum working temperature: 25 °C
• Maximum working temperature: 100 °C
• Temperature stability: ±0.1 K

Technical specifications

• Model: Hydro H 16
• Operating temperature range: 25 … 100 °C
• Ambient temperature range: 10 … 40 °C
• Heating power max.: 1.5 kW
• Bath volume (min / max): 7.5 / 13.9 L
• Dimensions (W × D × H): 500 × 440 × 275 mm
• Weight: 14 kg
• Power supply: 230 V; 50/60 Hz (angled Schuko plug CEE7/7)
