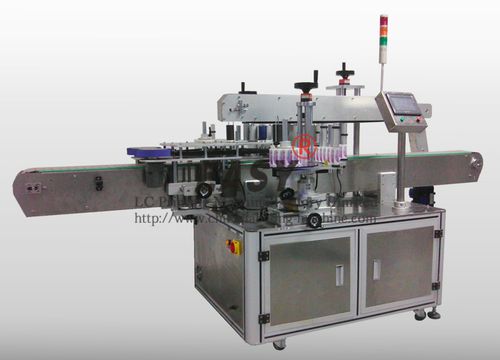

Automatic labelling machine ALM-71200
for bottlesdouble-sided

automatic labelling machine
automatic labelling machine
Add to favorites
Compare this product

Characteristics

Operational mode
automatic
Product application
for bottles
Other characteristics
double-sided
Throughput

120 p/min

Description

Double Sides Automatic Labeling Machine Application Double Sides Labeling Machine is applied to label square bottles , round bottles or flat bottles with double mark or single mark., as liquid shampoo bottles, mildy wash bottles.hand washing bottles , small cartons etc. Features 1. Labeling height and angle are adjustable. 2. Power spacer separates containers into fixed space. 3. Conveyor belt and labeling speed are adjustable. 4. Top Hold-Down Conveyor supports containers stand vertically. 5. Controlled by Microprocessor system with LED screen. 6. Labeling counter, easy to manage. 7. Specifically selected sponges flap labels after labeling to make labels attached perfectly. 8. Advanced detection system makes precise labeling. 9. Labeling speed is synchronized with conveyor belt. 10. The conveyor belt meets MCC standard. 11. Emergency stop button. 12. All are made of stainless steel and high quality aluminum alloy. Specification 1.Label width: 20-160mm 2.Label length:20-200mm 3.Products Size: Length: 20mm-250mm Width:30mm-90mm Height: 60mm-280mm 4.Max Outside diameter of label roll: φ280mm 5.Inside diameter of label roll: φ76mm 6.Max Labeling speed: 120pcs /min 7.Accuracy of labeling:±1mm 8.Power: 220V/110V 50/60Hz 1200W 9.Machine Net Weihgt : 350KG 10.Machine Dimension: 3050mm x 1500mm x 1600 mm
