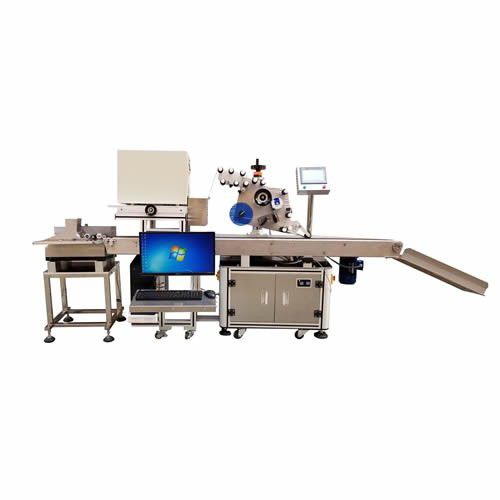

PLC-controlled labeling machine ALM-115P

semi-automaticfor bottlesfor tubes

Parameters: Labeling accuracy: ± 1mm (excluding product and label error); Labeling speed: 30-80 pieces / min (related to product and label size); Applicable product size: length: 40mm-300mm, width: 40mm-300mm, height: 0.2mm-2mm Applicable label size: label length: 6 mm-300 mm width (width of backing paper): 10 mm-120 mm Overall dimension: about 2450mm × 1200mm × 1350mm (L × w × h); Applicable power supply: 220V / 50Hz; Overall weight: about 230kg (subject to the actual machine weight). Main mechanism configuration Organization name, quantity, main materials, electrical name, quantity, model and specification Head mechanism: 1 set of aluminum alloy, stainless steel, acrylic measuring eye, 1 set of Germany Sike Paging mechanism 1 set of aluminum alloy, stainless steel PLC 1 set Panasonic Touch screen box 1 set of stainless steel touch screen 1 set of Samkoon 7 inch color screen Material receiving structure: 1 set of stainless steel conveying motor; 1 set of Chuanming variable frequency motor Adjustment mechanism: 1 set of aluminum alloy and stainless steel transmission motor frequency converter; 1 set of Delixi frequency converter Conveying mechanism: 1 set; stainless steel / aluminum alloy measuring object eye: 1 set; Shengke (including amplifier) Guide mechanism: 1 set of acrylic traction motor: 1 set of rexai stepping motor Electric box: 1 set of aluminum alloy and stainless steel traction motor driver; 1 set of rexai driver 1 set of European state motor Main electrical configuration Electrical name, quantity, model and specification 1 set of measuring eye PLC 1 set Panasonic Touch screen 1 set of Samkoon 7-inch color screen
