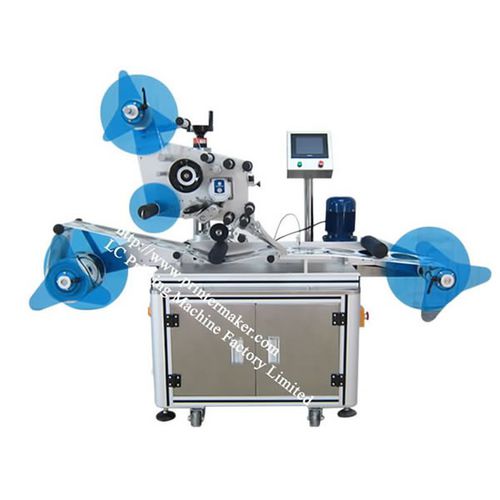

PLC-controlled labeling machine ALM-11100

semi-automaticfor bottlesfor tubes

Automatic Labeling Machine For Rolling Materical Rolling Materical Automatic Labeling Machine Model: ALM-11100 This machine is used for Rolling Materical Labeling Specification 1.Label width: 20-150mm 2.Label length:（wind label direction）6mm～100mm 3.Rolling Material width: 20-200mm 4.Max Outside diameter of label roll: φ350mm 5.Inside diameter of label roll: φ76mm 6.Max Labeling speed: 40～300pcs label /min 7.Accuracy of labeling:±1mm 8.Power: 220V/110V 50/60Hz/1500W 9.Machine Size:1550*720*1350mm 10.Conveyor height from ground:800mm(Customize) 11.Net Weight:200KG, Gross Weight:278KG 12.Packing Size:1770*1000*1570mm Product Feature: 1.More wide using, can plane label at film for products width 20mm～200mm, can label for uneven surface’s product while change the label covering machine. 2.High labeling accurate, with Stepper motor or Servo motor driving for label, More accurate; organization of label’s road can avoid deflecting of it; Eccentric gear technology be used by Traction organization, ensure the label will not slip, and go forward accurate. 3.Sturdy and durable, adopt 3 poles adjustable organization, To sure the equipment more durable and sturdy. 4.High stability，Panasonic PLC + KUNLUN TONGTAI Screen + Panasonic needle electronic eye + Leuze label testing electronic eye as the high grade electronic control, support equipment working at 7*24hours; 5.Easy debuggin, design adjust seat with 6 degree of freedom, can be change for different products, easy operate, saving time. 6.Intelligent control,Automatic photoelectric tracing, no label for when product didn’t come, automatic correct, automatic testing, can avoid leaking and wasting.
