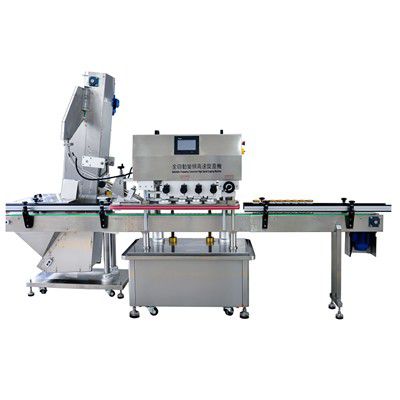

Automatic capping machine ALM-1208XG

bottlehigh-speed

Automatic Frequency Conversion High Speed Capping Machine Model:ALM-1208XG Technical: Cap diameter:φ19-55mm Bottle diameter:φ23-100mm Bottle Height:45-320mm Screwing Speed:30-100 bottles/min ( depending on bottle types) Power:AC220V 50/60Hz 1000W Weight:650KG Press Range:0.4-0.6Mpa Host dimension:2700×830×2190 Weight of capping machine:345kg Dimension of capping machine:1060*560*2300mm Feature: Advanced HMI operating system, PLC control, 304 stainless steel surface; 8-wheel capping in operation makes the screwing speed fast and effectively avoids theft-proofing cap breakage and damage to the bottle caps. It is possible to cater to varied bottle caps within the scope of this machine without replacement of parts by simply adjusting the synchronous belt, distance between cap screwing wheels and rack height.It applies to varied tall and short bottles which are round, square, oblate. Applications: 1.It is used for cap screwing of round bottles, square bottles or oblate bottles. 2.It can be used on the independent rack and is suitable for cap screwing at large scale production lines of customers. 3.It applies to customers requiring replacement of different specifications of bottles.
