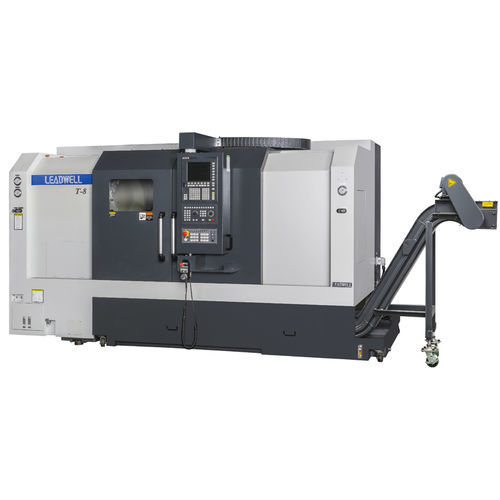

CNC turning center T-8 series 2-axishigh-productivitypowerful
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Other characteristics
- high-productivity, powerful
- Diameter
600 mm, 637 mm, 670 mm
(23.62 in, 25.08 in, 26.38 in)- Spindle speed
3,500 rpm
(21,991.149 rad.min-1)- Maximum cutting diameter
285 mm, 430 mm, 450 mm
(11 in, 17 in, 18 in)- Maximum cutting length
620 mm, 745 mm, 760 mm
(24 in, 29 in, 30 in)- Bar capacity
77 mm
(3 in)- Axe X
215 mm, 225 mm
(9 in)- Axe Z
670 mm, 680 mm, 790 mm
(26 in, 27 in, 31 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
20,000 mm/min
(13 in/s)
Description
*Rigid 45 deg. Slant bed cast iron base
*C axis and VDI 40&BMT 65 live tooling version available
INCREASED CAPACITY
*10 inch chuck standard
ERGONOMIC CONSIDERSATIONS
*Easy to use membrane touch-pad control station
*Easy moving operator door
*Parts catcher available
*No chip or coolant leaks
