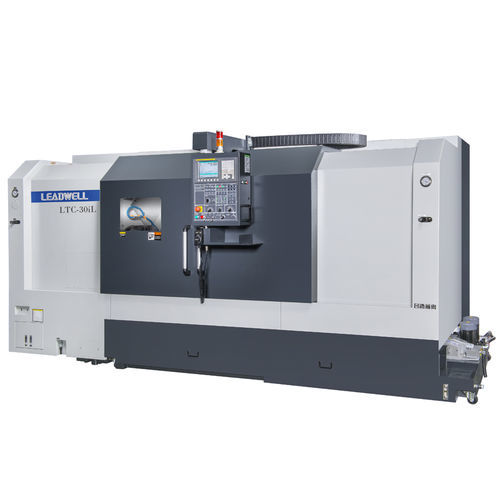

CNC turning center LTC-30i series 2-axishigh-productivitypowerful
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Other characteristics
- high-productivity, powerful
- Diameter
750 mm
(29.53 in)- Spindle speed
Max.: 2,500 rpm
(15,707.963 rad.min-1)Min.: 35 rpm
(219.911 rad.min-1)- Maximum cutting diameter
370 mm, 550 mm
(15 in, 22 in)- Maximum cutting length
Max.: 2,000 mm
(79 in)Min.: 1,000 mm
(39 in)- Bar capacity
103 mm
(4 in)- Axe X
275 mm
(11 in)- Axe Z
1,050 mm, 1,550 mm, 2,050 mm
(41 in, 61 in, 81 in)- Rapids on X
15,000 mm/min, 20,000 mm/min
(10 in/s, 13 in/s)- Rapids on Z
15,000 mm/min, 20,000 mm/min
(10 in/s, 13 in/s)
Description
*Rigid 45 deg. Slant bed cast iron base
INCREASED CAPACITY
*12 inch chuck standard
ERGONOMIC CONSIDERSATIONS
*Easy to use membrane touch-pad control station
*Easy moving operator door
*Parts catcher available
*No chip or coolant leaks
