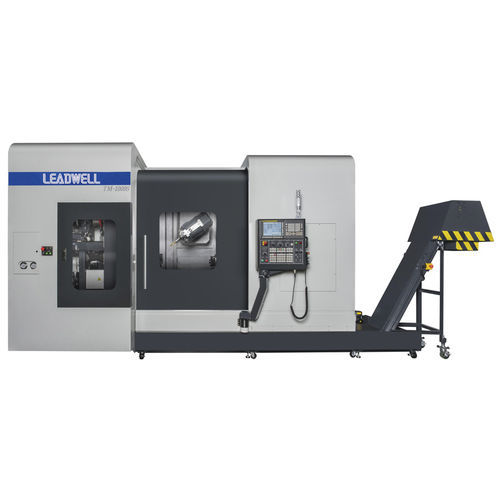

CNC turning center TM series 3-axisA2-840 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Spindle mount
- A2-8
- Number of tool stations
- 40 tools
- Applications
- drilling
- Other characteristics
- milling, cutting, multi-function, Y-axis
- Diameter
750 mm
(29.53 in)- Spindle speed
3,500 rpm, 12,000 rpm
(21,991.149 rad.min-1, 75,398.224 rad.min-1)- Maximum cutting diameter
670 mm
(26 in)- Maximum cutting length
1,050 mm, 1,700 mm, 2,000 mm
(41 in, 67 in, 79 in)- Bar capacity
78 mm
(3 in)- Axe X
600 mm
(24 in)- Axe Z
1,100 mm, 1,750 mm, 2,050 mm
(43 in, 69 in, 81 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
44.6 kW
(60.6 hp)
Description
*The multi-function machine with B-axis can easy have bevel angle drilling and cutting work.
*The B-axis is driven by DD build-in motor, the best torque is 3000Nm, and with curved coupling it can easy do a heavy cutting job shop work and also curved surface milling.
*The Y-axis design is perpendicular type, and match with our moving column machine structure, the Y-axis have complete movement. It will not have dead space for the travel. (Y-axis travel +/-130mm).(applying for patent now.)
*C axis(chuck spindle): Minimum spindle incremental value: ±0.001(work-piece
angle positioning).
*B axis: continuous operation angel:0.001゜(continuous milling), toothed clutch
indexing angle: 5゜(clamping turning).
