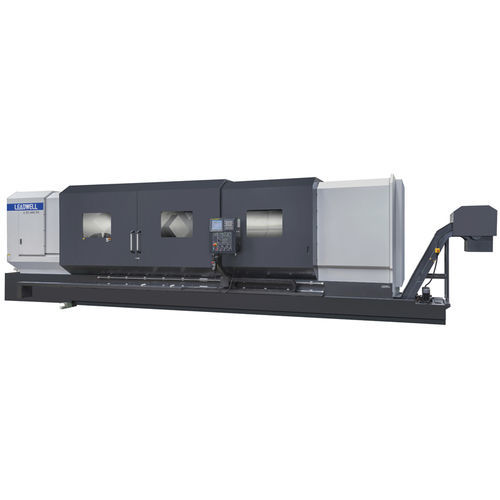

CNC turning center LTC-6 series3-axishigh-productivitypowerful
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Other characteristics
- high-productivity, powerful
- Diameter
1,020 mm, 1,200 mm
(40.16 in, 47.24 in)- Spindle speed
1,500 rpm
(9,424.778 rad.min-1)- Maximum cutting diameter
Max.: 1,080 mm
(43 in)Min.: 640 mm
(25 in)- Bar capacity
117 mm
(5 in)- Axe X
Max.: 515 mm
(20 in)Min.: 320 mm
(13 in)- Axe Z
Max.: 6,000 mm
(236 in)Min.: 1,000 mm
(39 in)- Rapids on X
8,000 mm/min, 12,000 mm/min
(5 in/s, 8 in/s)- Rapids on Z
8,000 mm/min, 12,000 mm/min
(5 in/s, 8 in/s)
Description
*Rigid 45 deg. Slant bed cast iron base
INCREASED CAPACITY
*18inch chuck standard
*C axis and VDI 60 & BMT 75 live tooling version available
ERGONOMIC CONSIDERSATIONS
*Easy to use membrane touch-pad control station
*Easy moving operator door
*Parts catcher available
*No chip or coolant leaks
