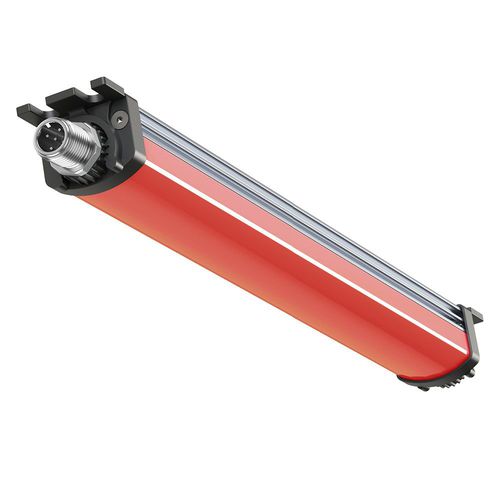

LED indicator light SIGNALED II RGB-W

surface-mountIP54

The SIGNALED II RGB-W, 1020 mm (~40,16“) is a versatile LED surface-mounted light with RGB LEDs, offering a wide color palette. Each LED color has a power of ~8,64 W (Red), ~5,76 W (Green), and ~8,64 W (Blue), and the luminous flux is 552 lm lm (Red), 1008 lm lm (Green), and 336 lm lm (Blue). With a beam angle of 120°, the light is evenly distributed. The connection is via a M12 A-coded connector with 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W). The luminaire is certified with protection rating IP54 and protection class III, and operates in a temperature range of -10 °C - +50 °C (14 °F - 122 °F). The lifespan is over > 100,000 h (L80/B10). The housing is made of aluminium and the cover is made of polycarbonate, soft, with dimensions of 25 mm x 30 mm (~0,98“ x ~1,18“) x 1020 mm (~40,16“) and a weight of 740 g (~26 oz) (gross weight 900 g (~32 oz)). The luminaire provides even, colorful light for visibility and safety and is suitable for machines and equipment without chip exposure and coolant, such as bending machines, punching machines, as well as conveyors, roller doors, and logistics workstations. The included brackets allow for fixed or movable installation. White lamp luminous flux: - 4600 lm Lamp luminous efficiency: - 159,72 lm/W Light colour white: - 5600K 3-step MacAdam Power consumption RED: - ~8,64 W Lamp luminous flux RED: - 552 lm Power consumption GREEN: - ~5,76 W Lamp luminous flux GREEN: - 1008 lm Power consumption BLUE: - ~8,64 W Lamp luminous flux BLUE: - 336 lm Light distribution: - direct Connected load: - 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W) Connection (connector): - M12 A-coded Degree of protection: - IP54 Class of protection: - III
