LED indicator light 111090-12

surface-mountIP54signaling

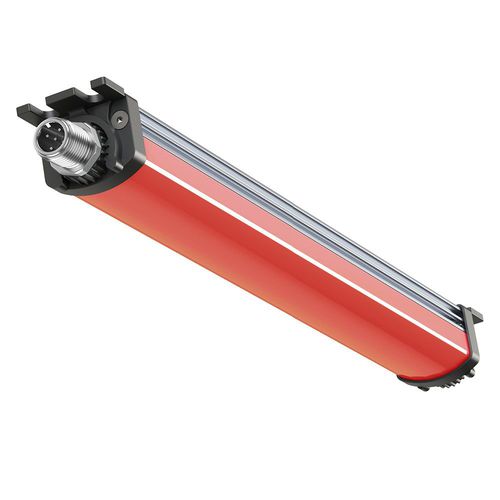

The SIGNALED II RGB, 260 mm (~10,24“) is a versatile LED surface-mounted light with RGB LEDs, offering a wide color palette. Each LED color has a power of ~1,44 W (Red), ~0,96 W (Green), and ~1,44 W (Blue), and the luminous flux is 91 lm lm (Red), 168 lm lm (Green), and 55 lm lm (Blue). With a beam angle of 120°, the light is evenly distributed. The connection is via a M12 A-coded connector with 24V DC - 10% +7% (RGB). The luminaire is certified with protection rating IP54 and protection class III, and operates in a temperature range of -10 °C - +50 °C (14 °F - 122 °F). The lifespan is over > 100,000 h (L80/B10). The housing is made of aluminium and the cover is made of polycarbonate, soft, with dimensions of 25 mm x 30 mm (~0,98“ x ~1,18“) x 260 mm (~10,24“) and a weight of 230 g (~8 oz) (gross weight 280 g (~10 oz)). The luminaire provides even, colorful light for visibility and safety and is suitable for machines and equipment without chip exposure and coolant, such as bending machines, punching machines, as well as conveyors, roller doors, and logistics workstations. The included brackets allow for fixed or movable installation. Lamp luminous flux GREEN: - 168 lm Power consumption BLUE: - ~1,44 W Lamp luminous flux BLUE: - 55 lm Light distribution: - direct Light colour: - RGB colour space (at least 2563 colours) Connected load: - 24V DC - 10% +7% (RGB) Connection (connector): - M12 A-coded Class of protection: - III Glare control: - opal white Beam angle (optics): - 120° Operating temperature: - -10 °C - +50 °C (14 °F - 122 °F) Lamps lifetime: - > 100,000 h (L80/B10) Housing material: - aluminium Cover material: - polycarbonate, soft Height [B] x Width [C]: - 25 mm x 30 mm (~0,98“ x ~1,18“)
