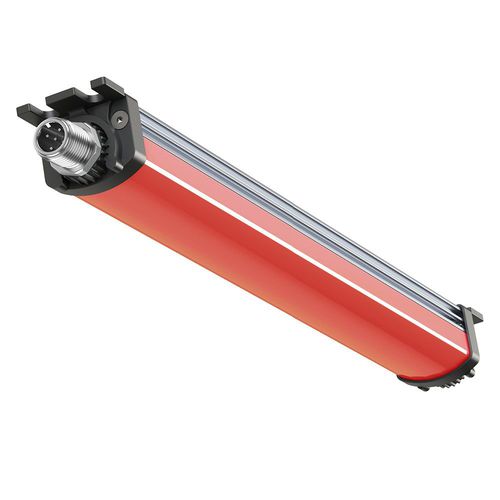

LED indicator light 111090-45

surface-mountIP54signaling

The SIGNALED II RGB-W, 760 mm (~29,92“) is a versatile LED surface-mounted light with RGB LEDs, offering a wide color palette. Each LED color has a power of ~6,48 W (Red), ~4,32 W (Green), and ~6,48 W (Blue), and the luminous flux is 414 lm lm (Red), 756 lm lm (Green), and 252 lm lm (Blue). With a beam angle of 120°, the light is evenly distributed. The connection is via a M12 A-coded connector with 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W). The luminaire is certified with protection rating IP54 and protection class III, and operates in a temperature range of -10 °C - +50 °C (14 °F - 122 °F). The lifespan is over > 100,000 h (L80/B10). The housing is made of aluminium and the cover is made of polycarbonate, soft, with dimensions of 25 mm x 30 mm (~0,98“ x ~1,18“) x 760 mm (~29,92“) and a weight of 600 g (~21 oz) (gross weight 700 g (~25 oz)). The luminaire provides even, colorful light for visibility and safety and is suitable for machines and equipment without chip exposure and coolant, such as bending machines, punching machines, as well as conveyors, roller doors, and logistics workstations. The included brackets allow for fixed or movable installation. White lamp luminous flux: - 3450 lm Lamp luminous efficiency: - 159,72 lm/W Light colour white: - 5600K 3-step MacAdam Power consumption RED: - ~6,48 W Lamp luminous flux RED: - 414 lm Power consumption GREEN: - ~4,32 W Lamp luminous flux GREEN: - 756 lm Power consumption BLUE: - ~6,48 W Lamp luminous flux BLUE: - 252 lm Light distribution: - direct Connected load: - 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W) Connection (connector): - M12 A-coded Class of protection: - III Glare control: - opal white Beam angle (optics): - 120°
