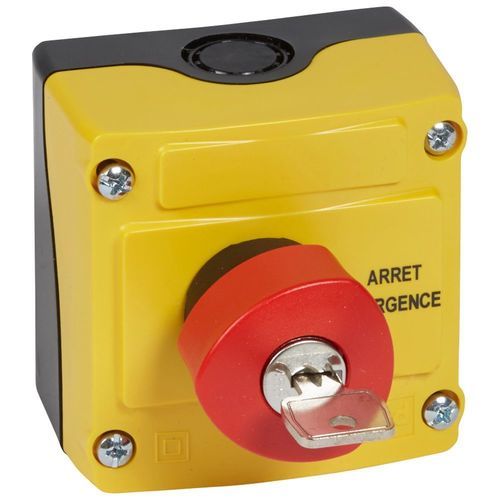

Control electrical enclosure Osmoz

equippedsurface-mountedpolycarbonate

Overview

• LEGRAND Osmoz 1-hole push-button enclosure
• Ingress protection IP66
• Yellow cover
• Equipped with head and contact block
• Red key-operated emergency push Ø40, key No.455, with normally closed (NC) contact
• Emergency stop compliant with ISO 13850
• Osmoz, enclosure for control and signalling auxiliaries

Range information
Products in the Osmoz range are control and signalling auxiliaries, illuminated or non-illuminated. They are composed of heads (momentary push-buttons, double rockers, latching push-buttons, rotary selectors with lever, key switches, indicators, emergency stops...). In configurable versions, a head must be combined with a block assembly or a block and a bracket. A complete version is also available. These control and signalling units are mounted on a panel or in an enclosure. Command identification can be done using a frame with insert or labels.

Product information

• Reference: 0 242 15
• Brand: LEGRAND
• Regularly stocked product
• 2-year warranty (to be claimed from the distributor or professional reseller)

Characteristics / technical specifications

• Unlocking type: Key release
• Number of opening contacts: 1
• Protection class (IP): IP66
• Mounting: Surface mounting
• With illumination: No
• Hole diameter: 22.5 mm
• Cap diameter: 40 mm
• Auxiliary circuit connection type: Screw connection
• Compliance / standard: Emergency stop compliant with ISO 13850
• EAN / Gencode: 3245060242152
