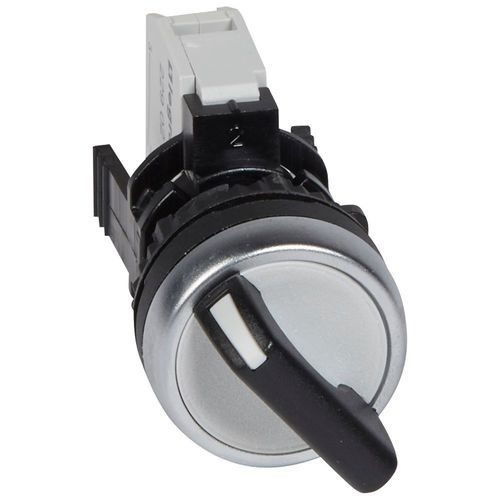

Operating mode selector switch Osmoz

Summary

• Osmoz complete non-illuminated rotary selector switch with lever
• Black actuator, commercial designation IP69
• 2 fixed positions - 90° + NO (023915 + 022962)
• Complete unit assembled from heads and contact-block sub-assemblies (blocks + brackets), screw terminals
• Compliant with IEC 60947-5-1

Range information
Osmoz products are control and signalling auxiliaries, available illuminated or non-illuminated. The range includes push-buttons, double rockers, maintained push-buttons, rotary selector switches with lever, key-operated, indicators, emergency stops and more. Configurable versions require combining a head with a contact-block sub-assembly or a block plus bracket. Ready-to-install complete versions are also available. Units are mounted on panels or within enclosures. Command identification can be added using frames with inserts or labels.

Product features

• Non-illuminated rotary selector switch Osmoz complete with lever
• Black actuator – commercial IP69 designation
• 2 fixed positions, 90° rotation, normally open contacts (NO) - references 023915 + 022962
• Complete device composed of head and contact-block sub-assemblies, screw-type connections
• Conforms to IEC 60947-5-1 standard

Technical characteristics / specifications

• Switch type: Multi-position selector switch
• Number of poles: 1
• Rated operational voltage (Ue) AC max: 230 V
• Rated continuous current (Iu): 3 A
• Number of switching positions: 2
• With position 0: Yes
• With automatic return to position 0: No
• Enclosure type: Flush-mounted device
• Complete device in housing: No
• Actuator finish: Lever
• Front panel ingress protection (IP): IP66 (see remark)
• Remark: Commercial name and title indicate IP69; technical datasheet specifies IP66 for the front face
• EAN / Gencode: 3245060237301
