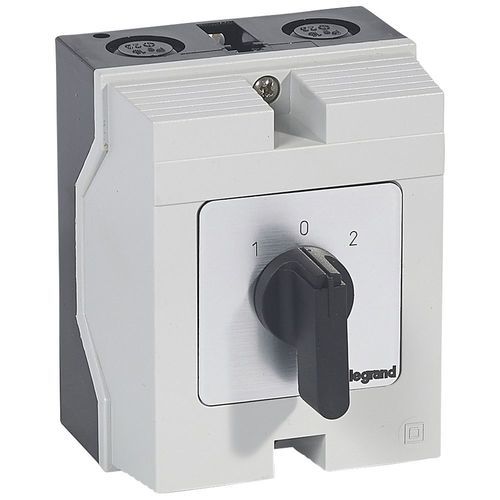

Manual transfer switch PR26

panel-mount

Overview
Cam switch - changeover with 45° OFF position (PR26). IP65. Enclosure 96 mm x 120 mm. 2 poles, 4 contacts. Maximum rating in utilization category AC-21: 32 A. Surface-mounted device, class II. Positive-opening contacts and double-break poles. Handle available in black or grey-and-black. Front plate with marking. Compliant with IEC EN 60947-3.

Function
Enables selection and change of electrical circuit states. Provides visual indication of equipment status by handle position.

Technical characteristics / specifications

• Switch type: Multi-position cam switch
• Number of poles: 2
• Maximum operational voltage Ue (AC): 690 V
• Continuous rated current (Iu): 32 A
• Number of switching positions: 3
• With 0 position: Yes
• With automatic return to 0: No
• Construction type: Surface-mounted device
• Complete device in an enclosure: Yes
• Actuator finish: Handle / lever
• Front panel cutout: 64x64 mm
• Protection rating, front: IP65
• Manufacturer reference: 0 277 41
• EAN / Gencode: 3245060277413
