Fuse disconnect switch
3-poleACthree-phase

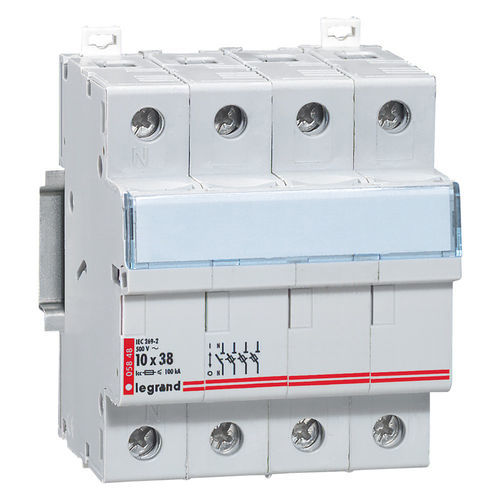

Fuse disconnect switch - Legrand - 3-pole / AC / three-phase
Fuse disconnect switch - Legrand - 3-pole / AC / three-phase
Add to favorites
Compare this product

Characteristics

Type
fuse
Number of poles
3-pole
Electrical characteristics
AC, fused, three-phase
Assembly
DIN rail
VAC

500 V

Description

Description
Switch-disconnector providing circuit isolation and protection. Supplied without fuse cartridge. Designed for industrial cylindrical cartridge fuses type aM or gG 10x38 mm. Compliant with standards NF HD/IEC 60269-2, NF C 63-210 and 60-200-2.

Summary
  • Use: three-pole switch-disconnector with switched neutral for cylindrical cartridge fuses
  • Compatible cartridge size: 10x38 mm (also compatible with 8x32 mm depending on performance)
  • Rated voltage: 500 V~
  • Modules: 4 modules
  • Supplied without cartridge

Breaking capacity
  • Switch-disconnector according to NF EN/IEC 60947-3
  • Icc: 20 kA with 8x32 mm cartridge
  • Icc: 100 kA with 10x38 mm cartridge

Available documents
Product sheet (FR/EN), commercial page, technical data sheet, RoHS conformity certificate, manufacturer REACH declaration, PEP sheet (Product Environmental Profile).

Characteristics / technical specifications
  • Reference: Ref. 0 058 48
  • Brand: LEGRAND
  • EAN / Gencode: 3245060058487
  • Rated voltage: 500 V
  • Mounting: DIN rail
  • For fuse size: 10x38 mm
  • Number of poles: 3
  • Neutral pole switched simultaneously: Yes
  • Lockable: Yes
  • Optical fault indication: No
  • Protection class (IP): IP20
  • RAL number: 7035
  • Off-the-shelf product
  • Warranty: 2 years (to be claimed via distributor or professional reseller)
