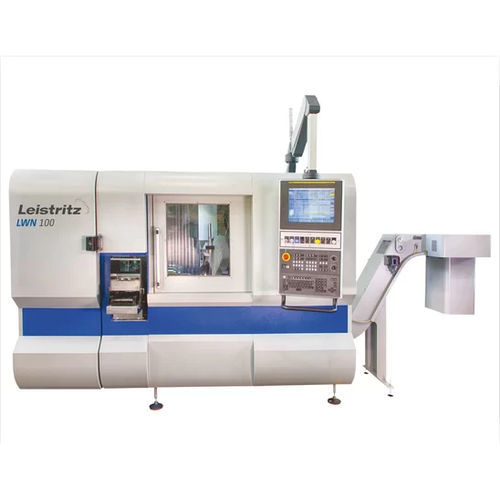

External whirling lathe LWN 100CNC
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Applications
- external whirling
- Diameter
Min.: 14 mm
(0.55 in)Max.: 30 mm
(1.18 in)- Spindle speed
160 rpm
(1,005.31 rad.min-1)- Maximum part length
220 mm
(9 in)- Overall lenght
3,960 mm
(156 in)- Overall width
2,530 mm
(100 in)- Overall height
2,290 mm
(90 in)- Weight
6,000 kg
(13,228 lb)
Description
The LWN 100 whirling machine is able to reliably process EPS screws with a module from 0.8 to 3 and a swivelling angle of up to 42 degrees twice as quickly as other production processes.
VIDEO
Catalogs
LWN 100
2 Pages
