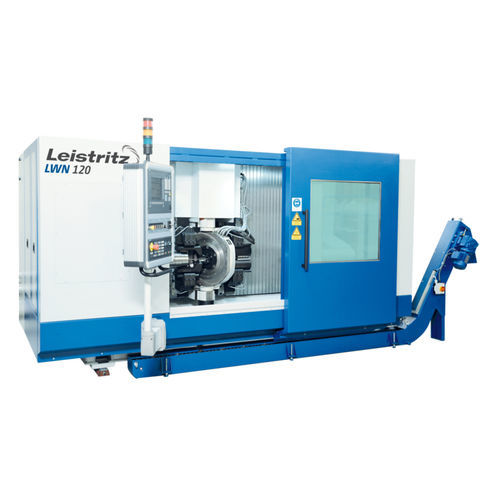

External whirling lathe LWN 120CNChigh-speedcutting
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Applications
- external whirling
- Other characteristics
- high-speed, cutting
- Diameter
Max.: 50 mm
(1.97 in)Min.: 15 mm
(0.59 in)- Maximum part length
950 mm
(37 in)- Overall lenght
5,400 mm
(213 in)- Overall width
2,980 mm
(117 in)- Overall height
2,220 mm
(87 in)- Weight
12,000 kg
(26,455 lb)
Description
The external whirling machine LWN 120 can be used universally and fulfills even the highest demands. Thanks to a torque motor, the machine is designed for high-speed cutting (up to 10,000 1/min). Together with its high machine rigidity, these are the ideal conditions for economical use in finish hard machining. The wide swiveling angle (±50°) makes it possible to finish almost all thread profiles and screws.
Catalogs
LWN 120 IW
2 Pages
