DC servomotor MCSsynchronousIP65IP54
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- synchronous
- Protection class
- IP65, IP54
- Configuration
- compact
- Cooling mechanism
- self-ventilated, forced ventilation
- Other characteristics
- low-inertia, precision, with built-in encoder
- Power
Min.: 0.25 kW
(0.34 hp)Max.: 15.8 kW
(21.482 hp)- Intensity
Min.: 1.3 A
Max.: 21.9 A
- Torque
Min.: 0.5 Nm
(0.3688 ft.lb)Max.: 53 Nm
(39.0908 ft.lb)- Rotational speed
Min.: 1,050 rpm
(6,597.34 rad.min-1)Max.: 6,000 rpm
(37,699.11 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)
Description

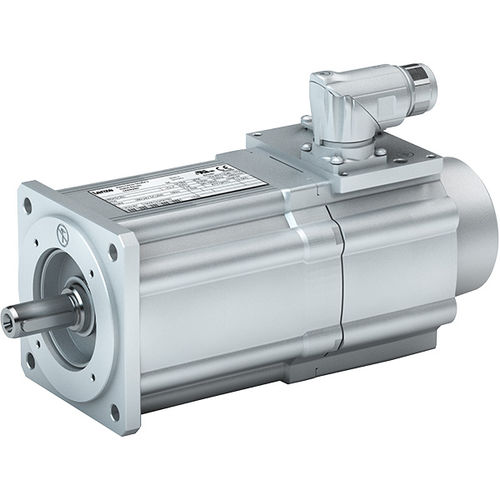

The MCS synchronous servo motors are particularly suitable for applications that require high dynamics, precision and compact dimensions.
- High overload capacity
- Large angular accelerations
- Plug connections for quick mounting and easy serviceability
- Optimized for use as geared motors with g500, g7x0, and g8x0 gearboxes
- Can be combined with i700 cabinet and i950 cabinet servo inverters
