DC servomotor m850 series
with brakecompactIP65

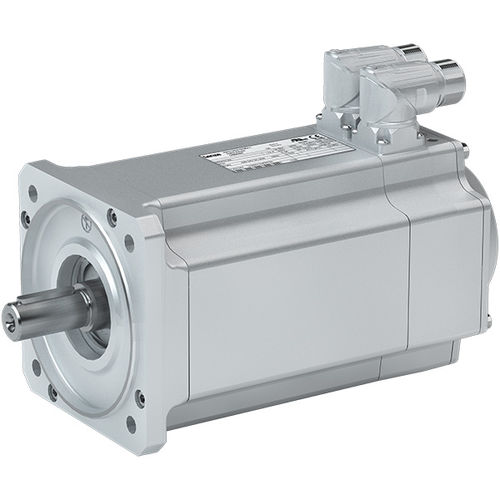

DC servomotor - m850 series - Lenze SE - with brake / compact / IP65
DC servomotor - m850 series - Lenze SE - with brake / compact / IP65
DC servomotor - m850 series - Lenze SE - with brake / compact / IP65 - image - 2
DC servomotor - m850 series - Lenze SE - with brake / compact / IP65 - image - 3
Add to favorites
Compare this product

Characteristics

Type
DC
Configuration
with brake, compact
Protection class
IP65, IP54, robust
Cooling mechanism
self-ventilated
Applications
for robotics, packaging machine
Other characteristics
with built-in encoder
Power

Max.: 9.2 kW
(12.51 hp)

Min.: 0.11 kW
(0.15 hp)

Torque

Max.: 35 Nm
(25.814675 ft.lb)

Min.: 4.8 Nm
(3.540298 ft.lb)

Rotational speed

2,500 rpm, 3,000 rpm, 3,200 rpm, 4,000 rpm
(15,707.9633 rad.min-1, 18,849.5559 rad.min-1, 20,106.193 rad.min-1, 25,132.7412 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

The compact m850 servo synchronous motors are particularly suitable for applications in which high inertias are moved and which also require robust drive behavior, e.g. in the field of positioning, robotics and packaging technology as well as for handling systems. In combination with our servo inverters, powerful drive solutions are possible in the torque range up to 200 Nm. Highlights Compact design Easy controllability by an advantageous ratio of the mass inertia of the load and that of the motor. Optimal smooth running characteristics for exact work results Digital absolute value encoder for One Cable Technology (OCT) or other feedback systems Optimized for use as geared motors with g500, g7x0, and g8x0 gearboxes Can be combined with the i750 cabinet and i950 cabinet servo inverters
