Asynchronous motor m500
three-phase380 Vmodular

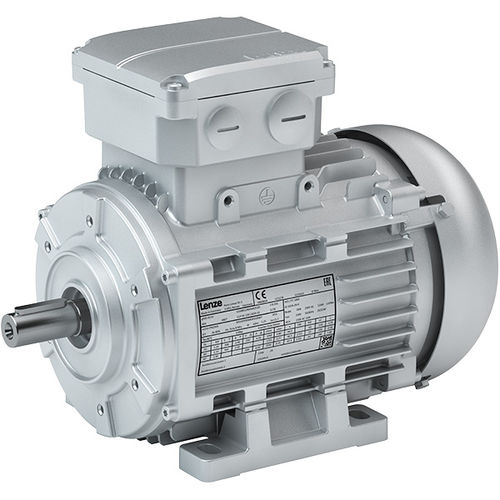

Asynchronous motor - m500 - Lenze SE - three-phase / 380 V / modular
Asynchronous motor - m500 - Lenze SE - three-phase / 380 V / modular
Asynchronous motor - m500 - Lenze SE - three-phase / 380 V / modular - image - 2
Add to favorites
Compare this product

Characteristics

Type
asynchronous, three-phase
Voltage
380 V
Configuration
modular
Efficiency classes
IE2, IE3
Number of poles
4-pole
Applications
for drive systems
Other characteristics
high-efficiency, with built-in encoder
Power

Min.: 0.12 kW
(0.16 hp)

Max.: 55 kW
(74.78 hp)

Intensity

Min.: 0.41 A

Max.: 38.8 A

Torque

Min.: 1 Nm
(0.737562 ft.lb)

Max.: 142 Nm
(104.733825 ft.lb)

Description

With the new m550 and m540 three-phase AC motors we offer you a future-proof drive solution for your machine. They also meet the legal requirements of the world's most important regions such as the USA, Europe and Asia. The IE2-high efficiency m550-H three-phase AC motors cover the power range from 0.12 ... 0.55 kW. The IE3-premium efficiency m550-P three-phase AC motors cover the power range from 0.75 ... 22 kW. The IE3-premium efficiency m540-P three-phase AC motors cover the power range from 30 ... 55 kW. Highlights Energy efficiency classes for an economic and future-proof use in many applications and countries Scalable modular system for optimum adjustment to machine requirements Easy connection via terminal box or conventional plug-in connectors for fast commissioning Optimized for use as geared motors with g500 gearboxes and i510 cabinet, i550 cabinet, and i550 protec frequency inverters
