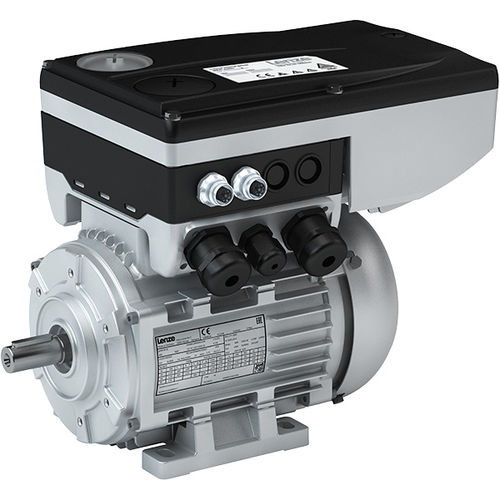

Asynchronous motor MF + 8400 motecACIP65IE2
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, AC
- Protection class
- IP65
- Efficiency classes
- IE2
- Other characteristics
- energy-saving, with integrated frequency inverter, with built-in encoder
- Power
Max.: 7.5 kW
(10.2 hp)Min.: 0.12 kW
(0.16 hp)- Torque
Max.: 20 Nm
(14.751243 ft.lb)Min.: 1.5 Nm
(1.106343 ft.lb)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -20 °C
(-4 °F)
Description
The energy-efficient, inverter-optimized MF three-phase AC motors with integrated 8400 motec frequency inverters cover the power range of 0.55 ... 7.5 kW and are particularly suitable for tasks that demand large setting ranges with minimal sizes.
Highlights
Exceed energy efficiency class IE2
Setting range up to 1:24 with constant torque
More dynamic than conventional three-phase AC motors
Speed control via the integrated frequency inverter enables universal use
Optimized for use as geared motors with g500 gearboxes
