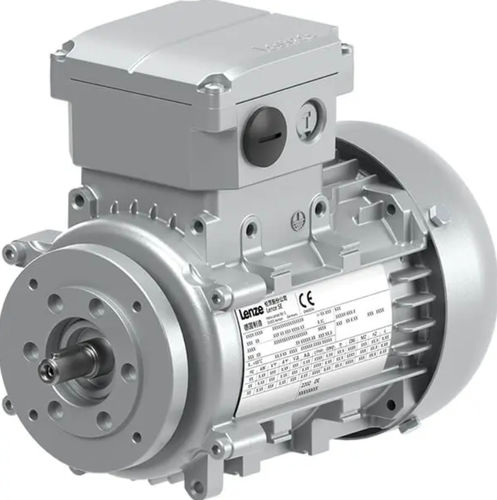

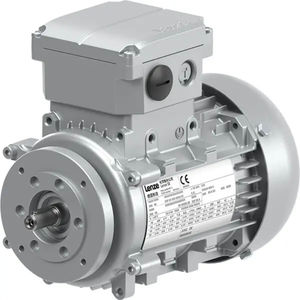

AC motor m550-V

three-phaseenergy-savingintegrated-drive

Overview
Compared with an IE3 motor, the m550‑V three‑phase AC motors reduce motor losses by up to 60% and exceed current global efficiency requirements. In many regions, investments in IE6 efficiency motors (Grade 1 per GB30253‑2024 for China) are promoted to reduce CO2 emissions and operating costs.

Highlights

• Highest energy efficiency class IE6 according to IEC TS 60034‑30‑2 and Grade 1 according to GB30253‑2024
• Starting torque up to 300% from standstill
• Compact footprint comparable to a standard three‑phase AC motor
• Optimized for sensorless operation with Lenze drives
• Scalable modular system for adaptation to machine requirements
• Fast commissioning via terminal box or conventional plug‑in connectors
• Suitable as solo motors, as gearmotors with g500 gearboxes, and with i510/i550 cabinet, i550 protec, and i550/i650 motec VFDs
• Available with factory‑mounted drive package on request

Technical data and features
Technical data: 0.25 ... 7.5 kW
Rated torque: 1.2 ... 38.5 Nm

Version: B3
B5
B14

• Energy efficiency: IE6 (IEC TS 60034‑30‑2) and Grade 1 (GB30253‑2024)
• Starting torque: up to 300% from standstill
• Mechanical versions: B3, B5, B14
• Compact design matching standard three‑phase motors
• Optimized for sensorless operation with Lenze drives
• Scalable modular design allows matching to machine requirements
• Connection options: terminal box or conventional plug‑in connectors
• Optimized for use as standalone motors, gearmotors with g500, and with i510/i550 cabinet, i550 protec and i550/i650 motec VFDs
• Option: motors can be supplied with mounted drive package
