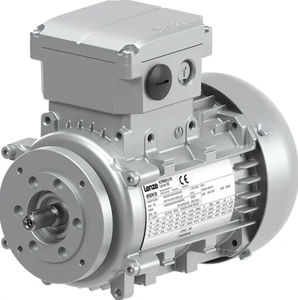

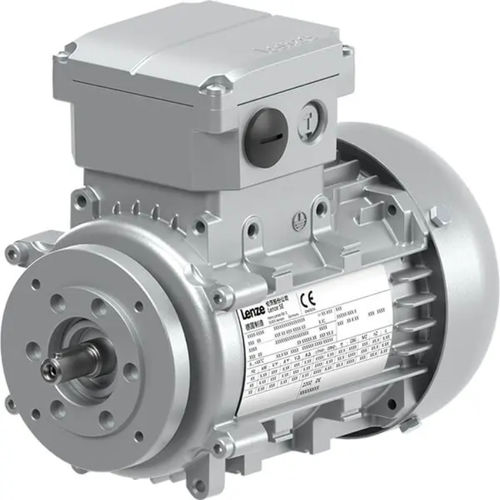

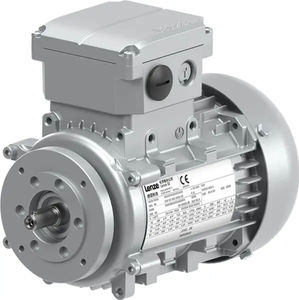

AC motor m650-U

three-phaseIE5energy-saving

Product overview
The m650-U three-phase AC motors are designed for dynamic industrial applications. Compared to IE3 motors, losses are reduced by up to 40%, exceeding common global efficiency requirements. In many regions, investments in IE5 energy efficiency (Grade 2) are promoted to reduce CO2 emissions. The 120 Hz IE5 m650-U motors cover the power range 0.75 ... 22 kW and are approximately two sizes smaller than an IE2/3 motor of the same power output.

Highlights

• Very high energy efficiency IE5 according to IEC TS 60034-30-2 and Grade 2 according to GB300253-2024
• Starting torque up to 250% from standstill
• Large setting range and low mass moment of inertia for reduced energy consumption during speed changes and constant torque delivery
• More dynamic response than conventional three-phase motors
• Optimized for use as solo motors, gearmotors with g500 gearboxes, and with i510/i550 cabinet, i550 protec, and i550/i650 motec VFDs
• Available with mounted drive package

Technical data and features
Technical data
0.75 ... 22 kW
1.9 ... 56.5 Nm

Version
B3
B5
B14

Technical specifications

• Rated power range: 0.75 ... 22 kW
• Rated torque range: 1.9 ... 56.5 Nm
• Energy efficiency: IE5 (according to IEC TS 60034-30-2) and Grade 2 (according to GB300253-2024)
• Starting torque: up to 250% from standstill
• Design: large setting range and low mass moment of inertia to reduce energy consumption during speed changes and ensure constant torque
• Dynamics: more dynamic than conventional three-phase motors
• Mechanical versions: B3, B5, B14
• Space efficiency: approximately two sizes smaller than an IE2/3 motor of the same power
• Optimized applications: solo motors, gearmotors with g500 gearboxes, use with i510/i550 cabinet, i550 protec, and i550/i650 motec VFDs
• Ordering option: available with mounted drive package
