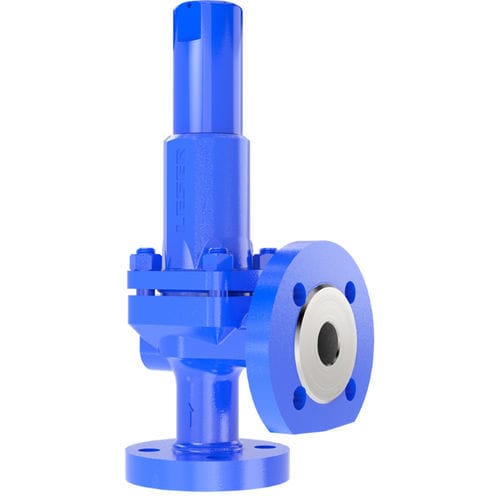

DIN safety valve 43 series stainless steelflangethermal
Add to favorites
Compare this product
Characteristics
- Connexion
- DIN
- Body material
- stainless steel
- Other characteristics
- flange, thermal
- DN
15 mm
(0.591 in)- Pressure
Max.: 160 bar
(2,320.6 psi)Min.: 0.3 bar
(4.4 psi)
Description
The optimal solution for:
Thermal expansion
Low mass flows to be discharged
Pump fuses
Temperature
(according to CE) - -270 to 450 °C | -454 to 842 °F
Capacity
orifice C-
Connections ASME B16.5
NPS 1/2
Flange class Inlet DIN EN 1092
PN 63 - PN 160
Flange class Inlet ASME B16.5
Class 300 - Class 600
Body material
1.0619, 1.4408 | SA 216 WCB, SA 351 CF8M
Narrowest flow diameter d₀
12 mm | 0.47 in
Narrowest flow area A₀
113 mm² | 0.175 in²
Seat gasket
Metallic, soft sealing
