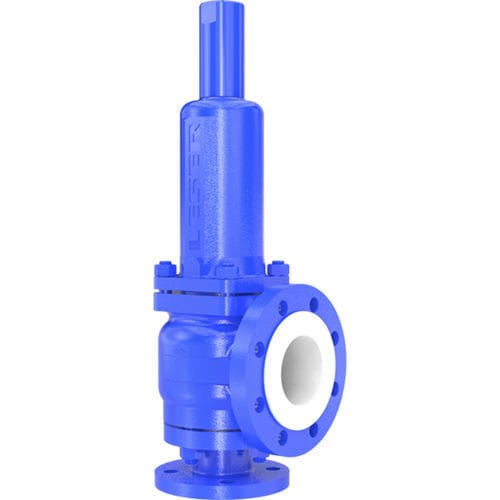

DIN safety valve 447 series for the chemical industrysteelflange
Add to favorites
Compare this product
Characteristics
- Connexion
- DIN
- Applications
- for the chemical industry
- Body material
- steel
- Other characteristics
- flange, corrosion-resistant
- DN
Min.: 25 mm
(0.984 in)Max.: 100 mm
(3.937 in)- Pressure
Min.: 0.1 bar
(1.5 psi)Max.: 16 bar
(232.1 psi)
Description
Safety valves with PTFE lining for corrosive media
Wetted areas made of corrosion resistant PTFE
Cost-effective alternative to high-alloy materials, such as nickel-based alloys
Optional ATEX compliant lining prevents electrostatic charge
Technical data Critical Service safety valves
Set pressure
0.1 - 16 barg | 1.45 - 232 psig
Temperature
-85 - 200 °C | -121 - 392 °F
Capacity -
orifice F+ to P
Connections ASME B16.5
NPS 1 to NPS 4
