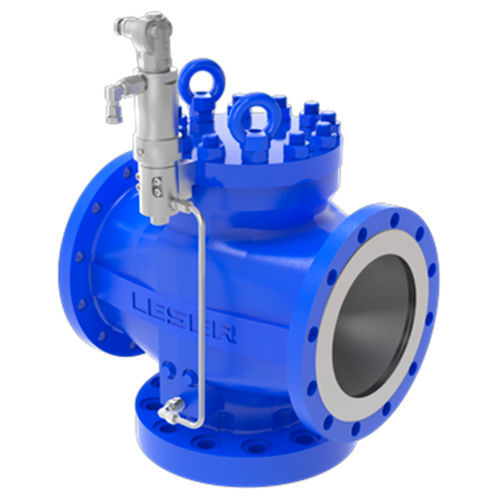

Gas safety valve 824DINfor the chemical industrystainless steel
Add to favorites
Compare this product
Characteristics
- Fluid
- gas
- Connexion
- DIN
- Applications
- for the chemical industry
- Body material
- stainless steel, steel
- Other characteristics
- flange, oil, pilote-operated
- DN
Min.: 100 mm
(3.937 in)Max.: 200 mm
(7.874 in)- Pressure
Min.: 2.5 bar
(36.3 psi)Max.: 102 bar
(1,479.4 psi)
Description
The optimal solution for:
operation at up to 91% from set pressure
Large reaction forces
Temperature
(according to CE) - -45 to 200 °C (individual case: -162 to 300 °C)
Temperature
(according to ASME) - -49 to 392 °F (individual case: -259.6 to 572 °F)
Capacity
orifice P+ - T+
Connections ASME B16.5
NPS 4 to NPS 8
Flange class Inlet DIN EN 1092
PN 10 - PN 100
Flange class Inlet ASME B16.5
Class 150 - Class 600
Body material
1.0619, 1.4408 | SA 216 WCB, SA 351 CF8M, SA 352 LCB, SA 351 CF3M
Narrowest flow diameter d₀
95 - 180 mm | 3.74 - 7.087 in
Narrowest flow area A₀
7088 - 25446.9 mm² | 10.986 - 39.443 in²
Seat gasket
Soft sealing, Metallic, Sealing plate
