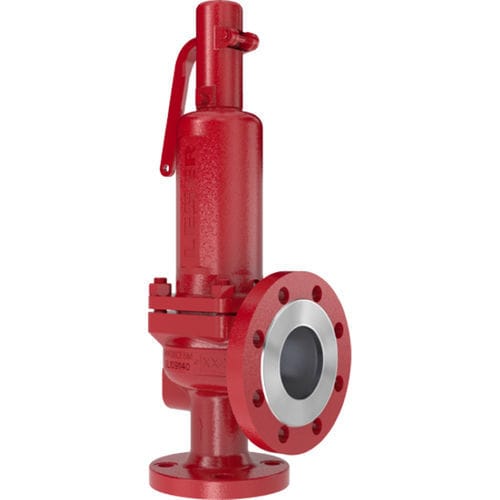

Steam safety valve 424DINcast ironstandard
Add to favorites
Compare this product
Characteristics
- Fluid
- steam
- Connexion
- DIN
- Body material
- cast iron
- Other characteristics
- flange, standard
- DN
Min.: 25 mm
(0.984 in)Max.: 150 mm
(5.906 in)- Pressure
Min.: 0.5 bar
(7.3 psi)Max.: 1 bar
(14.5 psi)
Description
Applications & Industries
Heating and building services engineering
Temperature
(according to CE) - up to 120 °C | up to 248 °F
Capacity
orifice G- to Q
Flange class DIN EN 1092
PN 16 | PN 16
Narrowest flow diameter d₀
23 - 125 mm | 0.98 - 4.92 in
Narrowest flow area A₀
416 - 12272 mm² | 0.65 - 19 in²
Bellows material
EPDM
Seat gasket
Metallic
