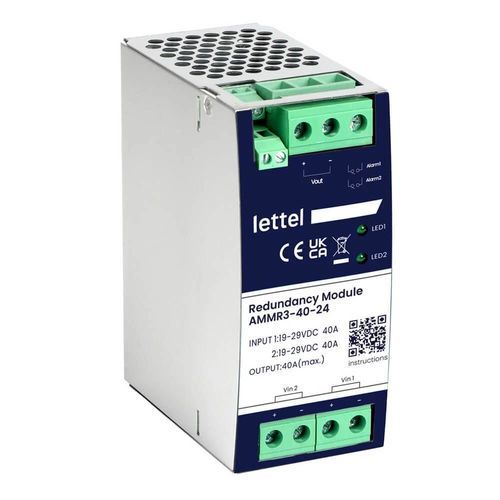

Redundancy module for DC power supplies AMMR3 series

Redundancy modules ensure the power supply of devices in direct current: - Electrical characteristics: 2 inputs 0-40A and 1 output 0-40A. Max current 60A for 5s. Input and output voltages 24VDC or 48VDC depending on models. - Output contacts: 2 independent contacts signal the failure of associated power sources. - Physical characteristics: Metal casing clip-on DIN rail, width 3 modules. Connection by screw terminals. - Features: Powered by 2 stabilized power supplies, the redundancy module doubles the power source of a device. Thus, in case of failure of one power supply, the downstream device remains powered by the second supply. An output contact assigned to each input warns in case of a source failure. - Standards and certifications: Compliance: CE, RoHs, Reach. Applicable standards: BS EN/EN55032 Class B, BS EN/EN 55035, BS EN/EN61000-4-2, 3, 4, 5, 6, 8, BS EN/EN55024. - Variants and order codes: Order Code | Primary Voltage | Output Voltage | Product Stocked AMMR3-40-24 | 24 VDC | 24 VDC | instock AMMR3-40-48 | 48 VDC | 48 VDC | instock - Resources: Learn more about stabilized AC/DC power supplies Lettel - Characteristics / Technical specifications: 2 inputs 0-40A, 1 output 0-40A Max current 60A for 5s Input/output voltage: 24VDC or 48VDC 2 independent output contacts for failure signaling Metal casing, DIN rail mounting, width 3 modules Connection by screw terminals Compliance: CE, RoHs, Reach Standards: BS EN/EN55032 Class B, BS EN/EN 55035, BS EN/EN61000-4-2, 3, 4, 5, 6, 8, BS EN/EN55024
