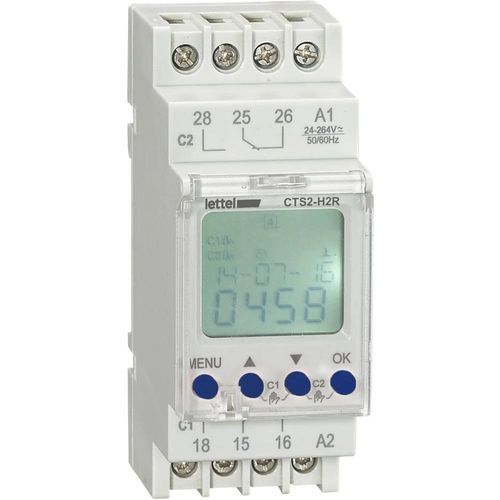

Digital time switch CTS2-H series

DIN rail

The CTS2-H time switch combines compact size with ease of use: - Electrical: Power supply from 24 to 230V depending on models. 4-year power reserve in case of power failure. CTS2-A1x model (1 channel): 1 changeover contact 16A/250V. CTS2-A2x model (2 channels): 2 changeover contacts 16A/250V. - Programming: Set time programs can be repeated on a daily or weekly cycle, with additional functions such as pulse emitter, flasher, random or vacation mode. Automatic summer/winter time switching. 6 languages available including French. Intuitive programming menu can be password protected. - Physical: LCD display with visualization of the day's programs on the main interface. 36 mm wide housing, DIN rail mountable. Seal-capable protective cover. - Time programming: Allows switching on devices or electrical circuits during programmed time slots. Often used for lighting, irrigation, or heating control applications. - Compliance: CE, RoHS. - Applicable standards: Electromagnetic Compatibility 2014/30/EU: EN60730-1:2011, EN60730-2-7:2010+AC:2011, EN61000-3-2:2014, EN61000-3-3:2013. Low Voltage Directive 2014/35/EU: EN60730-1:2011, EN60730-2-7:2010. Variants and order codes: Order code | Number of channels | Power supply voltage | Stocked product CTS2-H1L | 1 | 230 V AC | in stock CTS2-H1R | 1 | 24-240 V AC/DC | in stock CTS2-H2L | 2 | 230 V AC | in stock CTS2-H2R | 1 | 24-240 V AC/DC | in stock - Technical features / specifications: Power supply: 24 to 230V depending on model 4-year power reserve 1 or 2 changeover contacts (16A/250V) Daily or weekly programmable cycles Pulse, flasher, random, vacation functions Automatic summer/winter time change 6 languages menu, password protection LCD display, DIN rail mounting (36mm width) Seal-capable protective cover CE, RoHS compliant EMC and LVD standards: EN60730-1:2011, EN60730-2-7:2010+AC:2011, EN61000-3-2:2014, EN61000-3-3:2013
