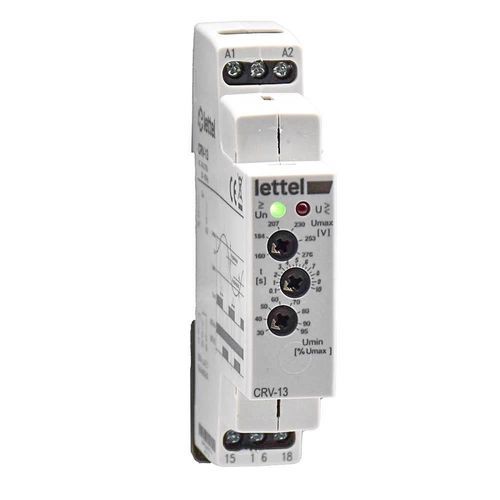

Voltage monitoring relay CRV-13

single-phaseDIN rail

The CRV-13 relay switches when a minimum or maximum voltage threshold is reached, thus protecting electrical devices from inappropriate voltage risks: - **Electrical:** For single-phase network. - **Relay:** 1 single-pole changeover contact 16A/250V. - **Programming:** Maximum threshold (Umax) adjustable from 160 to 276V. Minimum threshold adjustable from 30 to 75% of Umax. Delay time adjustable from 0.5 to 10 seconds. - **Physical:** Relay housing width 18 mm, DIN rail mountable. Adjustment via front panel levers. - **The relay switches if:** The voltage reaches the minimum or maximum threshold and the delay time has elapsed. - **Applications:** Protects electrical devices from inappropriate voltages; and/or triggers an alarm in case of abnormal voltage value. - **Conformities:** CE, RoHs, REACH. - **Applicable Standards:** EN 60255-1, EN 60255-26, EN 60255-27. **Features / Technical Specifications:** - For single-phase network - 1 single-pole changeover contact 16A/250V - Maximum threshold (Umax) adjustable from 160 to 276V - Minimum threshold adjustable from 30 to 75% of Umax - Delay time adjustable from 0.5 to 10 seconds - Relay housing width 18 mm, DIN rail mountable - Adjustment via front panel levers - Conformities: CE, RoHs, REACH - Standards: EN 60255-1, EN 60255-26, EN 60255-27
